MFG:OKI
Part Number: MSM27V1655CZ
MFG: OKI
Description: The MSM27V1655CZ is a 16Mbit electrically Programmable Read-Only Memory with page mode. Its configurat...
- Table of contents:
MSM27V1655CZ
-
Suppliers
DataSheet
General Description
MSM27V1655CZ General Description
The MSM27V1655CZ is a 16Mbit electrically Programmable Read-Only Memory with page mode. Its configuration can be electrically switched between 524,288 double word x 32bit and 1,048,576word x 16bit. The MSM27V1655CZ operates on a single +3.3V power supply and is TTL compatible. The MSM27V1655CZ provides Page mode which can greatly reduce the read access time. Since the MSM27V1655CZ operates asynchronously , external clocks are not required , making this device easy-to-use. The MSM27V1655CZ is suitable as large-capacity fixed memory for microcomputers and data terminals. It is manufactured using a CMOS double silicon gate technology and is offered in 70-pin SSOP , 70-pin TSOP packages.
MSM27V1655CZ Maximum Ratings
|
Parameter |
Symbol |
Condition |
Value |
Unit |
| Operating temperature under bias |
Topr |
- |
0 to 70 |
|
| Storage temperature |
Tstg |
-55 to 125 |
||
| Input voltage |
VI |
relative to VSS |
-0.5 to VCC + 0.5 |
V |
| Output voltage |
VO |
-0.5 to VCC + 0.5 |
V | |
| Power supply voltage |
VCC |
-0.5 to 7 |
V | |
| Program power supply voltage |
VPP |
-0.5 to 12.5 |
V | |
| Power dissipation per package |
PD |
- |
1.0 |
W |
MSM27V1655CZ Features
· 524,288 double word x 32bit / 1,048,576 word x 16bit electrically switchable configuration
· Single +3.3V power supply
· Access time 100ns
Page mode access time 30ns
· Input / Output TTL compatible
· Three-state output
· Packages
70-pin plastic SSOP (SSOP70-P-500-0.80-K)
70-pin plastic TSOP (TSOPII70-P-400-0.65-K)

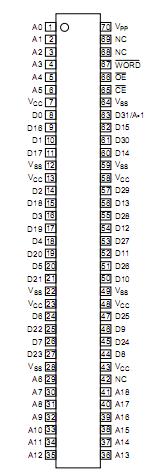

MSM27V1655CZ Connection Diagram
MSM27V1655CZ
