Part Number: MSM60851
Description: The MSM60851 is a general purpose Universal Serial Bus (USB) device controller. The MSM60851 provides ...
- Table of contents:
MSM60851
-
Suppliers
DataSheet
General Description
MSM60851 General Description
The MSM60851 is a general purpose Universal Serial Bus (USB) device controller. The MSM60851 provides a USB interface, control/status block, application interface, and FIFOs. The FIFO interface and two types of transfer have been optimized for BulkOut devices such as printers and BulkIn devices such as digital still cameras and image scanners.
MSM60851 Maximum Ratings
|
Rating |
Symbol |
Condition |
Value |
Unit |
| Power Supply 3 |
VCC3 |
- |
0.3 to 6.5 |
V |
| Power Supply 5 |
VCC5 |
0.5 to +6.5 |
V | |
| Input voltage |
VI |
0.3 to VCC5+0.3 |
V | |
| Storage temperature |
TSTG |
- |
55 to +150 |
°C |
MSM60851 Features
• USB 1.0 compliant
• Built-in USB transceiver circuit
• Full-speed (12 Mb/sec) support
• Supports printer device class and image device class
• Supports two types of transfer; control transfer and bulk transfer
• Built-in FIFOs for control transfer
Two 64 bytes (one for receive FIFO and the other for transmit FIFO)
• Built-in FIFOs for bulk transfer (available for either receive FIFO or transmit FIFO)
One 64 byte
One 128 byte (2-level)
• Supports one control endpoint and two bulk endpoint addresses
• 128 byte 2-level FIFO enables fast BulkOut transfer and BulkIn transfer
• Supports 8 bit/16 bit DMA transfer
• VCC is 3.0 V to 3.6 V
• Supporting dual power supply enables 5 V application interface
• Built-in 48 MHz oscillator circuit
• Package options:
44-pin plastic QFP (QFP44-P-910-0.80-2K) (Product name: MSM60851GA)
44-pin plastic TQFP (TQFP44-P-1010-0.80-K) (Product name: MSM60851TB)
• Built-in USB transceiver circuit
• Full-speed (12 Mb/sec) support
• Supports printer device class and image device class
• Supports two types of transfer; control transfer and bulk transfer
• Built-in FIFOs for control transfer
Two 64 bytes (one for receive FIFO and the other for transmit FIFO)
• Built-in FIFOs for bulk transfer (available for either receive FIFO or transmit FIFO)
One 64 byte
One 128 byte (2-level)
• Supports one control endpoint and two bulk endpoint addresses
• 128 byte 2-level FIFO enables fast BulkOut transfer and BulkIn transfer
• Supports 8 bit/16 bit DMA transfer
• VCC is 3.0 V to 3.6 V
• Supporting dual power supply enables 5 V application interface
• Built-in 48 MHz oscillator circuit
• Package options:
44-pin plastic QFP (QFP44-P-910-0.80-2K) (Product name: MSM60851GA)
44-pin plastic TQFP (TQFP44-P-1010-0.80-K) (Product name: MSM60851TB)

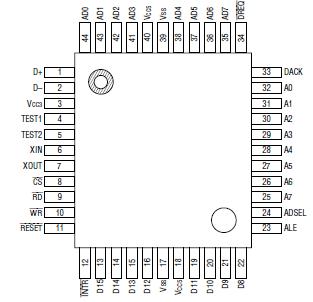

MSM60851 Connection Diagram
