General Description
MSM6262-xx General Description
The MSM6262-xx is a dot matrix LCD controller which is fabricated by OKI's low power consumption CMOS silicon gate technology. In combination with 8-bit microcontroller, the MSM6262-xx can control the dot matrix character type LCD module.
The MSM6262-xx is provided with a serial data transfer output. So, a maximum of 160 characters can be controlled by combining this device with the MSM5259, MSM5839C, or MSM5260.
The MSM6262-xx is recommended for use in an LCD panel which is capable of displaying 81 to 160 characters. If an LCD panel of which display capacity is 80 characters or less is used, the MSM6222B-xx is recommended.
The MSM6262-xx is best suited to be used as an LCD controller for applications such as electronic typewriters, POS system terminals, and data banks.
MSM6262-xx Maximum Ratings
| Parameter | Symbol | Condition | Rating | Unit | Applicable Pin |
| Supply Voltage | VDD | Ta = 25, VDDVSS | 0.3 to +7.0 | V | VDD, VSS |
| Supply Voltage for Driving LCD |
V1, V4, V5 | Ta = 25 | VDD 12 to VDD + 0.3 |
V | V1, V4, V5 |
| Input Voltage | VIN | Ta = 25 | 0.3 to VDD + 0.3 | V | OSC1, RESET 68 series / 80 series CS, A0, A1, R/W (WR) E (RD), DB0 - DB7 |
| Power Dissipation | PD | Ta = 25 | 500 | mW | |
| Storage Temperature | TSTG | 55 to +125 |
MSM6262-xx Features
• Dot matrix LCD controller/driver for three different font configuration
(5 x 7 dots, 5 x 11 dots and 5 x 12 dots)
• Up to 160 characters can be controlled
(Display data RAM ... 160 x 9-bit)
• On-chip character generator ROM (CGROM) for 256 different characters
5 x 7 dots ... 128 characters
5 x 11 dots ... 96 characters
5 x 12 dots ... 32 characters
• On-chip character generator RAM (CGRAM) (32 x 8-bit)
5 x 8 dots ... 4 kinds
5 x 12 dots ... 2 kinds
• Easy interface with Z80, 6809, 80C49, and 80C51
• Underline function
• Shift function for g, i, p, q and y
• Selectable driving duty
(5 x 7 dots, 5 x 11 dots and 5 x 12 dots)
• Up to 160 characters can be controlled
(Display data RAM ... 160 x 9-bit)
• On-chip character generator ROM (CGROM) for 256 different characters
5 x 7 dots ... 128 characters
5 x 11 dots ... 96 characters
5 x 12 dots ... 32 characters
• On-chip character generator RAM (CGRAM) (32 x 8-bit)
5 x 8 dots ... 4 kinds
5 x 12 dots ... 2 kinds
• Easy interface with Z80, 6809, 80C49, and 80C51
• Underline function
• Shift function for g, i, p, q and y
• Selectable driving duty

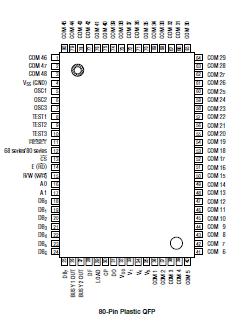

MSM6262-xx Connection Diagram
MSM6262-xx
PDF/DataSheet Download
- Datasheet: MSM6262-xx
- File Size: 392436 KB
- Manufacturer: OKI [OKI electronic componets]
