MSM6576

Features: • The IC can be initialized and operated even at a low voltage of 0.9 V.• Low power consumption• ROM : 2048 words * 17 bits• RAM : 64 words * 4 bits• I/O port Input-output port : 7 ports * 4 bits Input port : 1 port * 1 bit• Interrupt functions (real-t...

product image

MSM6576 Picture
See larger image
SeekIC No. : 004428984 Detail

MSM6576: Features: • The IC can be initialized and operated even at a low voltage of 0.9 V.• Low power consumption• ROM : 2048 words * 17 bits• RAM : 64 words * 4 bits• I/O port...

MSM6576 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM6576
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• The IC can be initialized and operated even at a low voltage of 0.9 V.
• Low power consumption
• ROM : 2048 words * 17 bits
• RAM : 64 words * 4 bits
• I/O port
   Input-output port : 7 ports * 4 bits
   Input port : 1 port * 1 bit
• Interrupt functions (real-time interrupt, external interrupt, and serial interrupt)
• Serial I/O port : 8-bit sync communication
• Buzzer output circuit
• Level detector : 7-level detection
• Comparator
• 73 instructions
• Minimum instruction execution time : 61s
• Operation under single 1.5 V power supply
• Built-in 32.768 kHz crystal oscillator circuit
• Package options:
  44-pin plastic QFP (QFP44-P-910-0.80-K) (Product name : MSM6576-**GS-K)
  44-pin plastic QFP (QFP44-P-910-0.80-2K) (Product name : MSM6576-**GS-2K)
  Chip
      ** indicates a code number.

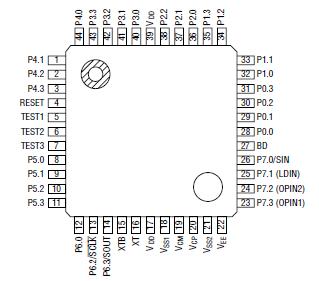

Pinout

Connection Diagram


Specifications

1.5 V operation
Backup flag (BUF) = "0"
The input of the constant voltage circuit is equal to the output of the voltage converter (VSS2).
VDD = 0 V (VSS1 = battery voltage)
Rating
Symbol
Condition
Rating
Unit
Power Supply Voltage
VDD
Ta = 25°C,
6.0 to +0.3
V
Input Voltage
VIN
VSS1 0.3 to +0.3
V
Output Voltage
VOUT
VSS1 0.3 to +0.3
V
Storage Temperature
TSTG
-
55 to +150
°C



Description

MSM6576 is a 4-bit, low-power microcontroller that is manufactured in a CMOS silicon-gate process. The microcontroller can be started and operated at a low supply voltage of 0.9 V.

This MSM6576 contains a crystal oscillator circuit, voltage converter circuits, a time base counter,a ROM, a RAM, a stack RAM, I/O ports, interrupt function components, a serial I/O port, a buzzer output circuit, a level detector, and a differential amplifier.

This IC MSM6576 is driven by one battery and is well suited to products that need to be operated under low power consumption.
