Product Details

Description



Features:

• Configuration : 524,288 x 1 bit
• Serial access operation
        Serial access time : 1.5 s (3.0 s)
        Serial read/write cycle time : 2.0 s (4.0 s)
        Fast mode read/write cycle time : 0.4 s (0.4 s)
        Times in parentheses indicate ones in self-refresh mode.
• Low current consumption : 100 mA max. (for data holding, Vcc=4.0 V)
•Wide operating supply voltage range : Single 3.5 to 5.5 V
• Auto-refresh/self-refresh changeable
• Package:
       18-pin plastic QFJ (PLCC) (QFJ18-P-R290-1.27) (Product name : MSM6587JS)

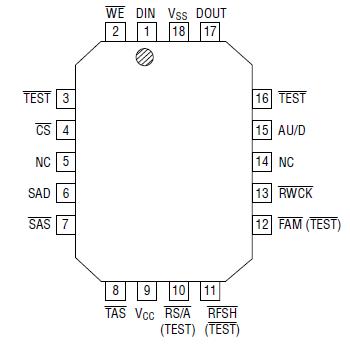

Pinout

Connection Diagram


Specifications

Rating
Symbol
Condition
Rating
Unit
Terminal Voltage
VT
Ta = 25°C,relative to VSS
1.0 to +7.0
V
Output Short-Circuit Current
IOS
Ta = 25°C
50
mA
Power Dissipation
PD
Ta = 25°C
1
W
Operating Temperature
TOP
-
0 to 70
°C
Storage Temperature
TSTG
-
55 to +150
°C



Description

The MSM6587 is a serial register in 524,288 words x 1 bit configuration featuring medium speed operation with low-power consumption.

The MSM6587 has a built-in internal address generator circuit allowing continuous serial read/write operation by external clock input. The internal address is automatically incremented or decremented by one by read/write operation. Address increment or decrement can be selected by external input.Address designation in units of 1024 words in the direction of words is possible by an externalserial address input.

A refresh timer and refresh counter are built in to eliminate the need of the external refresh circuit and to realize low power consumption.

18-pin plastic QFJ (PLCC) of MSM6587 is used as the package and the operating temperature range is between 0°C and 70°C.

The MSM6587 is suitable for storing large capacity data with battery backup. A solid state recording and playback system can easily be constructed in combination with OKI's voice synthesizer ICs.
