Part Number: MSM6597A-xxx
Description: The MSM6597A is a MSM6597 short TAT process version.The MSM6597A is a serial voice ROM with a 1,048,576-word ¥ 1-bi...
- Table of contents:
MSM6597A-xxx
-
Suppliers
DataSheet
General Description
MSM6597A-xxx General Description
The MSM6597A is a MSM6597 short TAT process version.The MSM6597A is a serial voice ROM with a 1,048,576-word ¥ 1-bit ¥ 3-bank configuration. The MSM6597A has a built-in internal address-generating circuit. A single, external clock input allows continuous, serial read operations. The internal addresses are automatically incremented by 1 by read operation. 1024 words in X direction and 1024 words in Y direction can be addressed by inputting external serial ad-dresses. Banks are switched with CS1, CS2, and CS3.A read and playback device with predetermined messages can easily be configured by storing voice data into the MSM6597A and by combining it with one of Oki's recording and pl-ayback ICs and with one of Oki's serial registers.
A serial register is required to drive the MSM6597A when used with the MSM6388 or MSM6588. (The MSM6597A does not operate without a serial register.)
The major differences between the MSM6597A and MSM6597 are shown below.
MSM6597A-xxx Maximum Ratings
|
Parameter |
Symbol |
Condition |
Rating |
Unit |
|
Power Supply Voltage |
VDD |
Ta = 25°C |
0.3 to +7.0 |
V |
|
Input Voltage |
VIN |
Ta = 25°C |
0.3 to VDD+0.3 |
V |
|
Storage Temperature |
TSTG |
Ta = 25°C |
0.3 to VDD+0.3 |
°C |
MSM6597A-xxx Features
• Configuration : 1,048,576 words ×1 bit × 3 banks
• Serial access : Read cycle time of 2.5 ms
• Shorter-TAT processing
• Power-supply voltage : 5 V single supply
• Package options :
SOP24-P-430-1.27-K) (Product name : MSM6597A-xxxGS-K)
SSOP30-P-56-0.65-K) (Product name : MSM6597A-xxxGS-AK)
• Serial access : Read cycle time of 2.5 ms
• Shorter-TAT processing
• Power-supply voltage : 5 V single supply
• Package options :
SOP24-P-430-1.27-K) (Product name : MSM6597A-xxxGS-K)
SSOP30-P-56-0.65-K) (Product name : MSM6597A-xxxGS-AK)

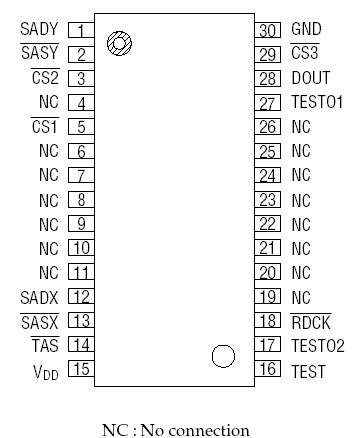

MSM6597A-xxx Connection Diagram
MSM6597A-xxx
PDF/DataSheet Download
- Datasheet: MSM6597A-xxx
- File Size: 144263 KB
- Manufacturer: OKI [OKI electronic componets]
- Click here to Download
