MSM6606

Features: • Power supply voltage : 5V ± 10%• Temperature range : 40 to +85°C• Can display an LCD of up to 80 segments (1/2 duty dynamic drive)• Can directly drive one LED (IO = 15 mA max.)• Internal 5 x 6 keyscan circuit allows reading of the status of up to 30 key sw...

product image

MSM6606 Picture
See larger image
SeekIC No. : 004428999 Detail

MSM6606: Features: • Power supply voltage : 5V ± 10%• Temperature range : 40 to +85°C• Can display an LCD of up to 80 segments (1/2 duty dynamic drive)• Can directly drive one LED (IO...

MSM6606 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM6606
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Power supply voltage : 5V ± 10%
• Temperature range : 40 to +85°C
• Can display an LCD of up to 80 segments (1/2 duty dynamic drive)
• Can directly drive one LED (IO = 15 mA max.)
• Internal 5 x 6 keyscan circuit allows reading of the status of up to 30 key switches
• A serial interface with the CPU is implemented by LOAD, DATA I/O, and CLOCK
• Built-in RC oscillation circuit for LCD alternating current drive
• Built-in voltage dividing resistor for bias voltage generation
• Package:64-pin plastic QFP (QFP64-P-1414-0.80-BK) (Product name : MSM6606GS-BK)


Pinout

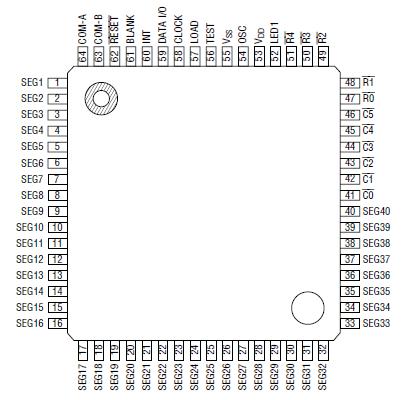

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Supply Voltage
VDD
Ta = 25°C
0.3 to +6.5
V
Input Voltage
VI
Ta = 25°C
0.3 to VDD+0.3
V
Output Voltage
IO
Ta = 25°C *1
20
mA
Storage Temperature
TSTG
-
55 to +150
°C
*1 Applicable to LED1


Description

The MSM6606 is an LCD driver for a 1/2 duty dynamic display. It can directly drive an LCD of up to 80 segments, and one LED. Keyboard input of MSM6606 is now available by the internal 5 x 6 keyscan circuit, and the number of wires between the front panel and the CPU can be minimized.
