Part Number: MSM6665C-xx
Description: The MSM6665C-xx is a dot-matrix LCD control driver which has functions of displaying characters, curso...
- Table of contents:
MSM6665C-xx
-
Suppliers
DataSheet
General Description
MSM6665C-xx General Description
The MSM6665C-xx is a dot-matrix LCD control driver which has functions of displaying characters, cursor and arbitrators.
The MSM6665C-xx is provided with a 17-dot common driver, 80-dot segment driver, display RAM and character ROM, and is controlled with the commands from the serial interface.
The character ROM can change the font data by mask option.
The MSM6665C-02 has standard ROM with 256 different character fonts.
The MSM6665C-xx can drive a variety of LCD panels because the bias voltage, which determines the LCD driving voltage, can be optionally supplied from the external source.
MSM6665C-xx Maximum Ratings
| Parameter | Symbol | Condition |
Rating |
Unit |
Applicable pin |
| Supply Voltage | VDD | Ta=25, VDDVSS |
0.3 to +7 |
V |
VDD, VSS |
| Bias Voltage | VBI | Ta=25, VDDVSS5 |
0.3 to +10 |
V |
VDD, VSS5 |
| Input Voltage | VI | Ta=25 |
0.3 to VDD+0.3 |
V |
All inputs |
| Power Dissipation | PD | Ta=25 *1 QFP128-1420 |
1210 |
mW |
|
| Storage Temperature | TSTG |
55 to +150 |
MSM6665C-xx Features
• Serial interface
• Contains a 17-dot common driver and an 80-dot segment driver.
• Contains ROM with character fonts of (5 x 7 dots) x 256.
• A built-in RC oscillator circuit.
• Provided with 80-dot arbitrators.
• Switchable between 1/9 duty (1 line; characters + cursor + arbitrator) and 1/17 duty (2 lines; characters + cursor, 1 line; arbitrator).
• Character blink operation can be switched between all-characters lighting-on mode and allcharacters lighting-off mode.
• SiG C-MOS process
• Arbitrator blink operation can be switched between 5-dot unit mode and 1-dot unit mode.
• Package options :
128-pin plastic QFP (QFP128-P-1420-0.50-K) (Product name: MSM6665C-xxGS-K)
Aluminum pad chip (Product name: MSM6665C-xx)
xx indicates code number.
• Contains a 17-dot common driver and an 80-dot segment driver.
• Contains ROM with character fonts of (5 x 7 dots) x 256.
• A built-in RC oscillator circuit.
• Provided with 80-dot arbitrators.
• Switchable between 1/9 duty (1 line; characters + cursor + arbitrator) and 1/17 duty (2 lines; characters + cursor, 1 line; arbitrator).
• Character blink operation can be switched between all-characters lighting-on mode and allcharacters lighting-off mode.
• SiG C-MOS process
• Arbitrator blink operation can be switched between 5-dot unit mode and 1-dot unit mode.
• Package options :
128-pin plastic QFP (QFP128-P-1420-0.50-K) (Product name: MSM6665C-xxGS-K)
Aluminum pad chip (Product name: MSM6665C-xx)
xx indicates code number.

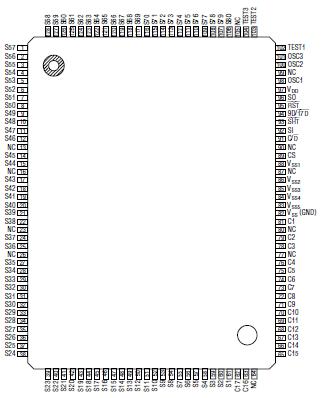

MSM6665C-xx Connection Diagram
MSM6665C-xx
PDF/DataSheet Download
- Datasheet: MSM6665C-xx
- File Size: 510976 KB
- Manufacturer: OKI [OKI electronic componets]
- Click here to Download
