Part Number: MSM6882-5
Description: The MSM6882-3/6882-5 is a single chip MSK (Minimum Shift Keying) modem which is fabricated by Oki's low power co-nsumpt...
- Table of contents:
MSM6882-5
-
Suppliers
DataSheet
General Description
MSM6882-5 General Description
The MSM6882-3/6882-5 is a single chip MSK (Minimum Shift Keying) modem which is fabricated by Oki's low power co-nsumption CMOS silicon gate technology. The demodulator receives the data to be transmitted (SD) synchronized wi-th the transmit timing clock (ST) generated by the on-chip clock generator. The signal, which is modulated by MSK m-ethod, is output.
The demodulator converts the received MSK signal to the received data (RD) by means of a delay detection technique after limiting the band of the received MSK signal. This signal is input to the digital PLL and the re-generated timing clock (RT) is output from the demodulator, synchronized with the RD.
MSM6882-5 Maximum Ratings
|
Parameter |
Symbol |
Condition |
Rating |
Unit |
|
Power Supply Voltage |
VDD |
Ta = 25°C With respect to GND |
0.3 to +7.0 |
V |
|
Input Voltage |
VI |
Ta = 25°C With respect to GND |
0.3 to VDD+0.3 |
V |
|
Operating Temperature |
Top |
- |
25 to 70 |
°C |
|
Storage Temperature |
TSTG |
- |
55 to 150 |
°C |
MSM6882-5 Features
• Signal power supply:+3.6 V (MSM6882-3)+5 V (MSM6882-5)
• On-chip SCF (Switched Capacitor Filter)
• The transmit filter can be also used as voice splatter filter.
• The receive timing re-generator has two different lock-in time performance options to be chosen from.
• Bit rate 2400/1200 bps
• CCIR Rec. 623
• The modulation method can be selected from COS-FFSK and SIN-FFSK.
• Built-in crystal oscillation circuit.
• Package options:
22-pin plastic DIP (DIP22-P-400-2.54) (Product name: MSM6882-3RS) (Product name: MSM6882-5RS)
24-pin plastic SOP (SOP24-P-430-1.27-K) (Product name: MSM6882-3GS-K) (Product name: MSM6882-5GS-K)
• On-chip SCF (Switched Capacitor Filter)
• The transmit filter can be also used as voice splatter filter.
• The receive timing re-generator has two different lock-in time performance options to be chosen from.
• Bit rate 2400/1200 bps
• CCIR Rec. 623
• The modulation method can be selected from COS-FFSK and SIN-FFSK.
• Built-in crystal oscillation circuit.
• Package options:
22-pin plastic DIP (DIP22-P-400-2.54) (Product name: MSM6882-3RS) (Product name: MSM6882-5RS)
24-pin plastic SOP (SOP24-P-430-1.27-K) (Product name: MSM6882-3GS-K) (Product name: MSM6882-5GS-K)

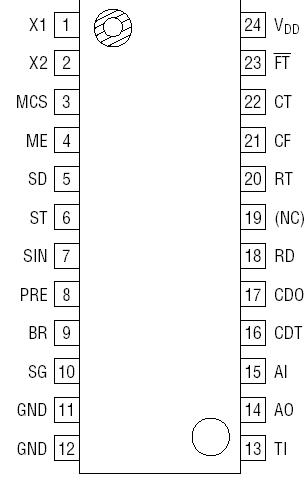

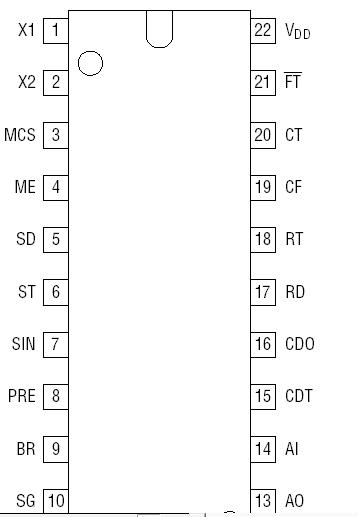

MSM6882-5 Connection Diagram
MSM6882-5
PDF/DataSheet Download
- Datasheet: MSM6882-5
- File Size: 122749 KB
- Manufacturer: OKI [OKI electronic componets]
- Click here to Download
