Part Number: MSM6927/6947
Description: The MSM6927 and the MSM6947 are OKI's 1200 bps single chip modem series which transmit and receive ser...
- Table of contents:
MSM6927/6947
-
Suppliers
DataSheet
General Description
MSM6927/6947 General Description
The MSM6927 and the MSM6947 are OKI's 1200 bps single chip modem series which transmit and receive serial, binary data over a switched telephone network using frequency shift keying(FSK).
The MSM6927 is compatible with ITU-T V.23 series data sets, while the MSM6947 is compatible with Bell 202 series data sets.
These devices provide all the necessary modulation, demodulation, and filtering required to implement a serial, asynchronous communication link. OKI's single chip modem series is designed for users who are not telecommunication experts and are easy to use cost effective alternative to standard discrete modem design. CMOS LSI technology provides the advantages of small size, low power, and increased reliability.
The design of the integrated circuit assures compatibility with a broad base of installed low speed modems and acoustic couplers. Applications include interactive terminals, desk top computers, point of sale equipment, and credit verification systems.
MSM6927/6947 Maximum Ratings
| Parameter | Symbol | Condition | Rating | Unit |
| Power Supply Voltage | VA | Ta = 25°C With respect to AG or DG |
0.3 to15 | V |
| VD | 0.3 to 7 | |||
| Analog Input Voltage *1 | VIA | 0.3 to VA + 0.3 | ||
| Digital Input Voltage *2 | VID | 0.3 to VD + 0.3 | ||
| Operating Temperature | VID | - | 0 to +70 | |
| Storage Temperature | TSTG | - | 55 to 150 | °C |
MSM6927/6947 Features
• Compatible with ITU-T V.23 (MSM6927)
• Compatible with BELL 202 (MSM6947)
• CMOS silicon gate process
• Switched capacitor and advanced CMOS analog technology
• Data rate from 0 to 1200 bps
• Half duplex (2-Wire)
• Receive squelch delay
• Selectable built-in timers and external delay timers possible
• All filtering, modulation, demodulation, and DTE interface on chip
• Crystal controlled oscillator on chip
• TTL compatible digital interface
• Low power dissipation: 90 mW Typ.
• Package options:
28-pin plastic DIP(DIP28-P-6002.54) (Product name: MSM6927RS)
(Product name: MSM6947RS)
44-pin plastic QFP (QFP44-P-910-0.80K) (Product name: MSM6927GS-K)
(Product name: MSM6947GS-K)
(QFP44-P-910-0.802K) (Product name: MSM6927GS-2K)
• Compatible with BELL 202 (MSM6947)
• CMOS silicon gate process
• Switched capacitor and advanced CMOS analog technology
• Data rate from 0 to 1200 bps
• Half duplex (2-Wire)
• Receive squelch delay
• Selectable built-in timers and external delay timers possible
• All filtering, modulation, demodulation, and DTE interface on chip
• Crystal controlled oscillator on chip
• TTL compatible digital interface
• Low power dissipation: 90 mW Typ.
• Package options:
28-pin plastic DIP(DIP28-P-6002.54) (Product name: MSM6927RS)
(Product name: MSM6947RS)
44-pin plastic QFP (QFP44-P-910-0.80K) (Product name: MSM6927GS-K)
(Product name: MSM6947GS-K)
(QFP44-P-910-0.802K) (Product name: MSM6927GS-2K)

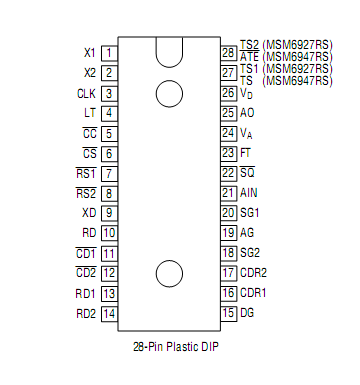

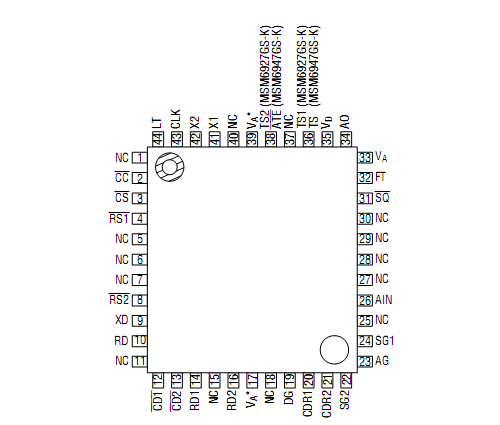

MSM6927/6947 Connection Diagram
