MSM7653

• Set top box
• DVD
• Digital VTR

(Note 1) This device is protected by U.S. Patent numbers 4631603, 4577216 and 4819098 and other intellectual property rights. The use of Macrovision Corporation's copy protection technology in the device must be authorized by Macrovision and is intended for home and other limited pay-per-view uses only, unless otherwise authorized in writing by Macrovision. Reverse engineering or disassembly is prohibited.

(Note 2) This data sheet does not describe the register setting method of implementing Macrovision Corporation's anticopy function that this device provides.Refer to MACROVISION ANTICOPY FUNCTION SETTING MANUAL for the anticopy function.

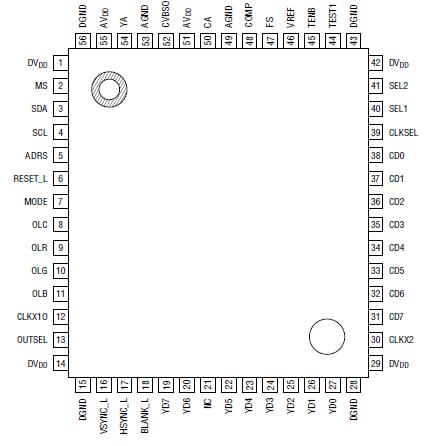

The MSM7653 is a digital NTSC/PAL encoder. By inputting digital image data conforming to ITU Rec. 656 or ITURBT 601, it outputs selected analog composite video signals, analog S video signals. For the scanning system, interlaced or noninterlaced mode can be selected.

Since the MSM7653 is provided with pins dedicated to overlay function, text and graphics can be superimposed on a video signal.In addition, this encoder has an internal 10-bit DAC. So, when compared with using a conventional analog encoder, the number of components, the board space, and points of adjustment can greatly be reduced, thereby realizing a low cost and high-accuracy system.

The MSM7653 provides the optional functions such as Macrovision Rev. 7.01 (note 1) (note 2) and Closed Caption Signal Generation Function.

The host interface provided conforms to Philips's I2C specifications, which reduces interconnections between this encoder and mounting components.The internal synchronization signal generator (SSG) allows the MSM7653 to operate in master mode.
