MFG:OKI Package Cooled:SOP D/C:04+
MFG: OKI
Package Cooled: SOP
D/C: 04+
Description: The MSM7716 is a single-channel CODEC CMOS IC for voice signals that contains filters for linear A/D a...
The MSM7716 is a single-channel CODEC CMOS IC for voice signals that contains filters for linear A/D and D/A conversion.
Designed especially for a single-power supply and low-power applications, the device is optimized for applications for the analog interfaces of audio signal processing DSPs and digital wireless systems.
The analog output signal can directly drive a ceramic type handset receiver. In addition, levels for analog outputs can be set by external control.
|
Parameter |
Symbol |
Condition |
Rating |
Unit |
| Power Supply Voltage |
VDD |
AG = DG = 0 V |
0.3 to 7 |
V |
| Analog Input Voltage |
VAIN |
AG = DG = 0 V |
0.3 to VDD + 0.3 | |
| Digital Input Voltage |
VDIN |
AG = DG = 0 V |
0.3 to VDD + 0.3 | |
| Storage Temperature |
TSTG |
- |
55 to 150 |
°C |
• Single power supply : +2.7 V to +3.6 V
• Low power consumption
Operating mode : 24 mW Typ.
Power down mode : 0.05 mW Typ.
• Digital signal input/output interface : 14-bit serial code in 2's complement format
• Sampling frequency(fs) : 4 to 16 kHz
• Transmission clock frequency : fs * 14 min., 2048 kHz max.
• Filter characteristics : when fs = 8 kHz, complies with ITU-T Recommendation G. 714
• Built-in PLL eliminates a master clock
• Two input circuits in transmit section
• Two output circuits in receive section
• Transmit gain adjustable using an external resistor
• Receive gain adjustable by external control 8 steps, 4 dB/step
• Transmit mic-amp is eliminated by the gain setting of a maximum of 36 dB.
• Analog outputs can drive a load of a minimum of 1 k ; an amplitude of a maximum of 4.0 VPP with push-pull driving.
• Built-in reference voltage supply

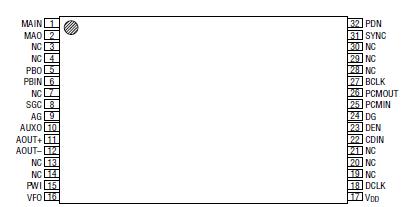

• Package options:
32-pin plastic TSOP (TSOPI32-P-814-0.50-1K) (Product name : MSM7716TS-K)
30-pin plastic SSOP (SSOP30-P-56-0.65-K) (Product name : MSM7716GS-K)
MSM7716
PDF/DataSheet Download
