MSM80C85AHGS

Features: •Power down mode (HALT-HOLD)•Low Power Dissipation: 50mW(Typ)•Single + 3 to + 6 V Power Supply•40 to + 85°C, Operating Temperature•Compatible with MSM80C85A•0.8 ms instruction Cycle (VCC= 5V)•On-Chip Clock Generator (with External Crystal)•...

product image

MSM80C85AHGS Picture
See larger image
SeekIC No. : 004429164 Detail

MSM80C85AHGS: Features: •Power down mode (HALT-HOLD)•Low Power Dissipation: 50mW(Typ)•Single + 3 to + 6 V Power Supply•40 to + 85°C, Operating Temperature•Compatible with MSM80C85A&#...

MSM80C85AHGS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM80C85AHGS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Power down mode (HALT-HOLD)
•Low Power Dissipation: 50mW(Typ)
•Single + 3 to + 6 V Power Supply
•40 to + 85°C, Operating Temperature
•Compatible with MSM80C85A
•0.8 ms instruction Cycle (VCC = 5V)
•On-Chip Clock Generator (with External Crystal)
•On-Chip System Controller; Advanced Cycle Status Information Available for Large SystemControl
•Bug operation in MSM80C85AH is fixed
•Four Vectored interrupt (One is non-maskable) Plus the 8080A-compatible interrupt.
•Serial, In/Serial Out Port
•Decimal, Binary and Double Precision Arithmetic
•Addressing Capability to 64K Bytes of Memory
•TTL Compatible
•40-pin Plastic DIP(DIP40-P-600-2.54): (Product name: MSM80C85AHRS)
•44-pin Plastic QFJ(QFJ44-P-S650-1.27): (Product name: MSM80C85AHJS)
•44-pin Plastic QFP(QFP44-P-910-0.80-2K): (Product name: MSM80C85AHGS-2K)

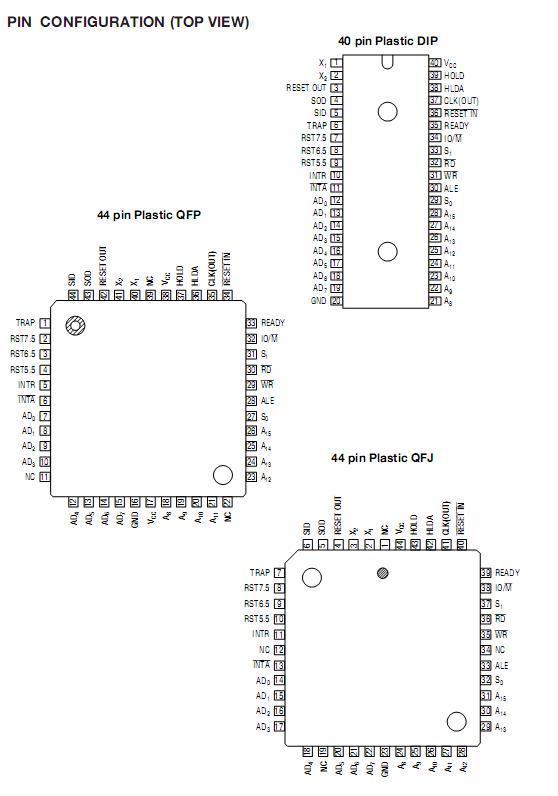

Pinout

Connection Diagram


Description

The MSM80C85AHGS is a complete 8-bit parallel; central processor implemented in silicon gateC-MOS technology and compatible with MSM80C85A.It is designed with higher processing speed (max.5 MHz) and lower power consumptioncompared with MSM80C85A and power down mode is provided, thereby offering a high levelof system integration.The MSM80C85AH uses a multiplexed address/data bus.  The address of MSM80C85AHGS is split between the 8-bit address bus and the 8-bit data bus.  The on-chip address latch : of a MSM81C55-5 memoryproduct allows a direct interface with the MSM80C85AH.
