Description: The MSM80C85AH is a complete 8-bit parallel; central processor implemented in silicon gate C-MOS techn...
The MSM80C85AH is a complete 8-bit parallel; central processor implemented in silicon gate C-MOS technology and compatible with MSM80C85A.
It is designed with higher processing speed (max.5 MHz) and lower power consumption compared with MSM80C85A and power down mode is provided, thereby offering a high level of system integration.
The MSM80C85AH uses a multiplexed address/data bus. The address is split between the 8- bit address bus and the 8-bit data bus. The on-chip address latch : of a MSM81C55-5 memory product allows a direct interface with the MSM80C85AH.
| Parameter | Symbol | Condition | Limits | Units | ||
| MSM80C85AHRS | MSM80C85AHGS | MSM80C85AHJS | ||||
| Power Supply Voltage | VCC | With respect to GND |
0.5 - 7 | V | ||
| Input Voltage | VIN | 0.5 - VCC +0.5 | V | |||
| Output Voltage | VOUT | 0.5 - VCC +0.5 | V | |||
| Storage Temperature | TSTG | 55 - +150 | ||||
| Power Dissipation | PD | Ta = 25 | 1.0 | 0.7 | 1.0 | W |
• Power down mode (HALT-HOLD)
• Low Power Dissipation: 50mW(Typ)
• Single + 3 to + 6 V Power Supply
• 40 to + 85, Operating Temperature
• Compatible with MSM80C85A
• 0.8 ms instruction Cycle (VCC = 5V)
• On-Chip Clock Generator (with External Crystal)
• On-Chip System Controller; Advanced Cycle Status Information Available for Large System Control
• Bug operation in MSM80C85AH is fixed
• Four Vectored interrupt (One is non-maskable) Plus the 8080A-compatible interrupt.
• Serial, In/Serial Out Port
• Decimal, Binary and Double Precision Arithmetic
• Addressing Capability to 64K Bytes of Memory
• TTL Compatible

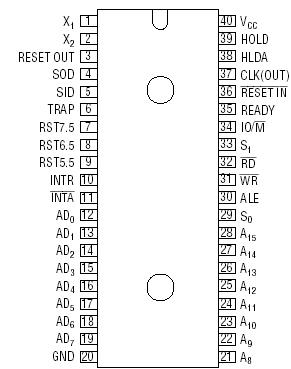

• 40-pin Plastic DIP(DIP40-P-600-2.54): (Product name: MSM80C85AHRS)
• 44-pin Plastic QFJ(QFJ44-P-S650-1.27): (Product name: MSM80C85AHJS)
• 44-pin Plastic QFP(QFP44-P-910-0.80-2K): (Product name: MSM80C85AHGS-2K)
MSM80C85AHRS
PDF/DataSheet Download
