Part Number: MSM8128-70
Description: The MSM8128 is a 1Mbit monolithic SRAM organised as 128K x 8. It is currently available in a VIL Packa...
- Table of contents:
MSM8128-70
-
Suppliers
DataSheet
General Description
MSM8128-70 General Description
The MSM8128 is a 1Mbit monolithic SRAM organised as 128K x 8. It is currently available in a VIL Package, with access times of 70, 85, 100, 120ns. It has a low power standby version and has 3.0V battery backup capability. It is directly TTL compatible and has common data inputs and outputs.
Two pinout variants (single and dual CS) are available.
All versions may be screened in accordance with MIL-STD-883.
MSM8128-70 Maximum Ratings
Voltage on any pin relative to VSS VT -0.5V to +7.0 V
Power Dissipation PT 1 W
Storage Temperature TSTG -55 to +150
Notes : (1) Stresses above those listed may cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended
periods may affect device reliability
Power Dissipation PT 1 W
Storage Temperature TSTG -55 to +150
Notes : (1) Stresses above those listed may cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended
periods may affect device reliability
MSM8128-70 Features
· Access Times of 70/85/100/120 ns
· JEDEC standard Dual CS footprints.
· Operating Power 550 mW (max)
· Low Power Standby (-L) 2.2 mW (max)
· Low Voltage Data Retention.
· Completely Static Operation
· Directly TTL compatible.
· May be processed in accordance with MIL-STD-883
· JEDEC standard Dual CS footprints.
· Operating Power 550 mW (max)
· Low Power Standby (-L) 2.2 mW (max)
· Low Voltage Data Retention.
· Completely Static Operation
· Directly TTL compatible.
· May be processed in accordance with MIL-STD-883

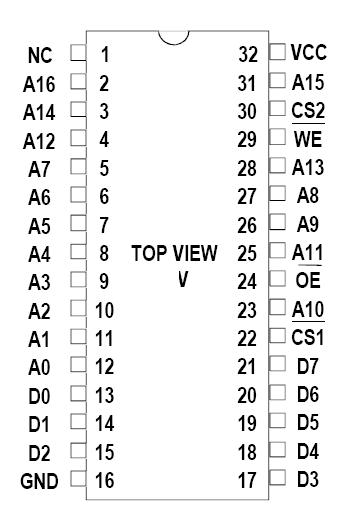

MSM8128-70 Connection Diagram
MSM10S0000
