Features:

• Logic power supply (VDD) : 3.3 V±10%/5.0 V±10%
• Fluorescent display tube drive power supply (VDISP) : 3.3 V±10%/5.0 V±10%
• Fluorescent display tube drive power supply (VFL) : 20 to 60 V
• VFD driver output current
  (VFD driver output can directly be connected to the fluorescent display tube. No pull-down resistor is required.)
   - Segment driver (SEG1 to SEG35) : 5 mA (VFL=60V)
   - Segment driver (AD1 to AD8) : 10 mA (VFL=60V)
   - Grid driver (COM1 to COM16) : 30 mA (VFL=60V)
• General output port output current
   - Output driver (P1-4) : ±1 mA (VDD=3.3V±10%)
                                        ±2 mA (VDD=5.0V±10%)
• Content of display
   - CGROM 5*7 dots, 224 types (character data)
   - CGRAM 5*7 dots, 32 types (character data)
   - ADRAM 16 (display digit) *8 bits (symbol data)
   - DCRAM 64 (stored digit) *8 bits (register for character data display)
   - General output port 4 bits (static mode)
• Display control function
   - Display digit : 1 to 16 digits
   - Display duty (contrast adjustment) : 16 stages
   - Display blink position specification : Blinking time is input externally
   - Display shift (left and right) : Can be set only for SEG output
   - All lights ON/OFF
• 4 interfaces with microcontroller : DA, CS, CP, and BLINK (5 interfaces when RESET is added)
• 1 byte instruction execution (excluding data write to RAM and display blink position specification)
• Oscillation circuit included (external C and R)
• Package:80-pin plastic QFP (QFP80-P-1414-0.65-K) (Product name: MSM9200-xxGS-K)
   xx indicated the code number.


Pinout

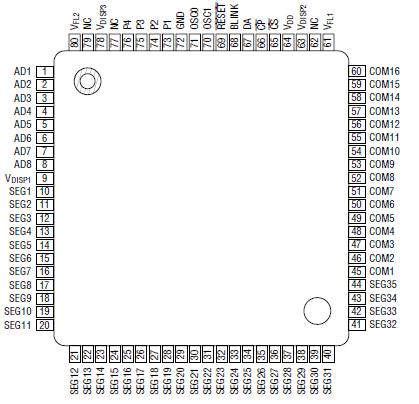

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Supply Voltage 1
VDD
(*1)
0.3 to 6.5
V
VDISP
(*1)
0.3 to 6.5
Supply Voltage 2
VFL
-
80 to VDISP+0.3
Input Voltage
VIN
-
80 to VDD+0.3
Power Dissipation
PD
Ta25°C
565
mW
Storage Temperature
TSTG
-
55 to 150
°C
Output Current
IO1
COM1-COM16
40 to 0.0
mA
IO2
AD1-AD8
20 to 0.0
IO3
SEG1-SEG35
10 to 0.0
IO4
P1-P4
4.0 to 4.0
*1 Use the same power supply for VDD and VDISP.


Description

The MSM9200-xx is a dot matrix vacuum fluorescent display tube controller driver IC which displays characters, numerics and symbols.

Dot matrix vacuum fluorescent display tube of MSM9200-xx drive signals are generated by serial data sent from a microcontroller. A display system is easily realized by internal ROM and RAM for character display.

The MSM9200-xx has low power consumption because it is munufactured in CMOS process technology.
-01 and -02 are available as general codes.
Custom codes are provided if necessary.
