General Description
MSM9810 General Description
The MSM9810 is an 8-channel mixing voice synthesis IC, to which up to 128 Mbits of ROM and/ or EPROM storing voice data can directly be connected externally.
The device is straight 8-bit PCM playback, non-linear 8-bit PCM playback, 4-bit ADPCM playback, and 4-bit ADPCM2 playback selectable and provides 2-channel stereo output and volume control. The MSM9810 contains a 14-bit D/A converter and LPF.
The MSM9810 can easily configure a system by connecting voice data storage memory, power amplifier, and CPU externally.
MSM9810 Maximum Ratings
| Parameter | Symbol | Condition | Condition | Unit |
| Power Supply Voltage | VDD | Ta=25 | 0.3 to + 7.0 | V |
| Input Voltage | VIN | 0.3 to VDD+ 0.3 | V | |
| Storage Temperature | VSTG | 55 to + 150 |
MSM9810 Features
• Non-linear 8-bit PCM / straight 8-bit PCM / 4-bit ADPCM / 4-bit ADPCM2
• Serial input or parallel input selectable
• Phrase Control Table function
• 8-channel mixing function
• Master clock frequency : 4.096 MHz
• Sampling frequency : 4.0 kHz, 5.3 kHz, 6.4 kHz, 8.0 kHz, 10.6 kHz, 12.8 kHz, 16.0 kHz, 21.2 kHz, 25.6kHz, 32.0kHz
• Maximum number of phrases : 256
• Output channel : L/R 2 channels
• Built-in volume control function (for each output channel)
• Built-in 14-bit D/A converter
• Builtin lowpass filter : Digital filter
• Package : 64-pin plastic QFP(QFP64-P-1414-0.80-BK)(Product name : MSM9810GS-BK)

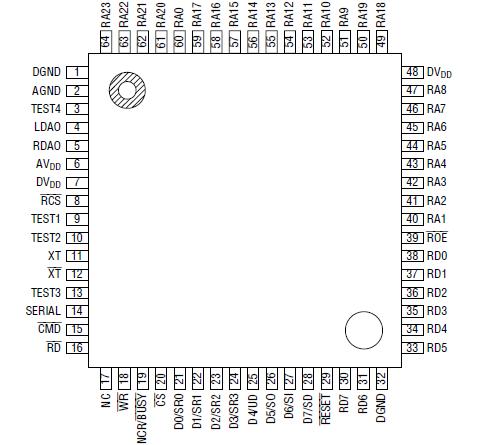

MSM9810 Connection Diagram
MSM9810
PDF/DataSheet Download
- Datasheet: MSM9810
- File Size: 176192 KB
- Manufacturer: OKI [OKI electronic componets]
- Click here to Download
