Five Points

Part Number: MST8111A

MFG: M-STAR

Package Cooled: TQFP

D/C: 07+

Description: The MST8111A is a high performance, and fully integrated graphics processing IC solution for LCD monit...

MST8111A General Description

The MST8111A is a high performance, and fully integrated graphics processing IC solution for LCD monitors with resolutions up to SXGA. It is configured with an integrated triple-ADC/PLL, a high quality scaling engine, an on-screen display controller, a built-in output clock generator, and LVDS display interface. To further reduce system costs, the MST8111A also integrates intelligent power management control capability for green-mode requirements and spread-spectrum support for EMI management.

MST8111A Maximum Ratings

Parameter	Symbol	Min	Typ	Max	Units
3.3V Supply Voltages	V_{VDD_33}	-0.3		3.6	V
2.5V Supply Voltages	V_{VDD_25}	-0.3		2.75	V
Input Voltage (5V tolerant inputs)	V_IN5Vtol	-0.3		5.0	V
Input Voltage (non 5V tolerant inputs)	V_IN	-0.3		V_{VDD_33}	V
Ambient Operating Temperature	T_A	0		70	°C
Storage Temperature	T_STG	-40		125	°C
Operating Junction Temp.	T_J	0		125	°C
Thermal Resistance (Junction to Air) Natural Conversion	_JA		34		°C/W
Thermal Resistance (Junction to Case) Natural Conversion	_JC		6.0		°C/W

Note: Stress above those listed under Absolute Maximum Rating may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions outside of those indicated in the operation sections of this specification is not implied. Exposure to absolute maximum ratings for extended periods may affect device reliability.

MST8111A Features

` High-quality zoom and shrink scaling engine (Compatible with VGA thru SXGA)
` Integrated 8-bit triple-ADC/PLL
` On-screen display controller (OSD)
`Supports single-RGB inputs
` Supports composite sync and SOG separator
`Programmable 10-bit gamma correction
` Integrated Brightness & Contrast control adjustment
` Supports PWM backlit intensity control
` Supports sRGB
` Green PC and low EMI features
` Built-in LVDS transmitter
` Low standby power mode (< 15mA)
High-Performance Scaling Engine
` Programmable shrink/zoom capabilities
`High-quality scaling for all VESA and IBM mode to fit screen
` Variable sharpness control
Analog RGB Compliant Input Port
` Supports up to SXGA at 75Hz
`Supports Composite Sync and SOG (Sync-on-Green) separator
Auto-Detection/Tune
` Auto input signal format (SOG, Composite, Separated HSYNC, VSYNC, and DE), and input mode (all VESA & IBM modes w/ resolution and polarity) detection
` Auto-tuning function including phasing, positioning, offset, gain, and jitter detection
` Smart screen-fitting
On-Screen OSD Controller
` Built-in OSD generator with 256 character font programmable RAM
` Supports for 4/8 multi-color fonts
` Gradient color function
` Supports button function
` Pattern generator for production test
`Support OSD MUX and alpha blending capability
LVDS Display Interface
` Supports Dual Link up to 135MHz dot clock for SXGA
` Supports 2 data output formats: Thine & TI data mappings
` Compatible with TIA/EIA
` With 6/8 bits options
` Reduced swing for LVDS for low EMI
External Connection/Component
`Built-in DDC circuit
` Supports serial (up to 400Kbit/sec) bus type

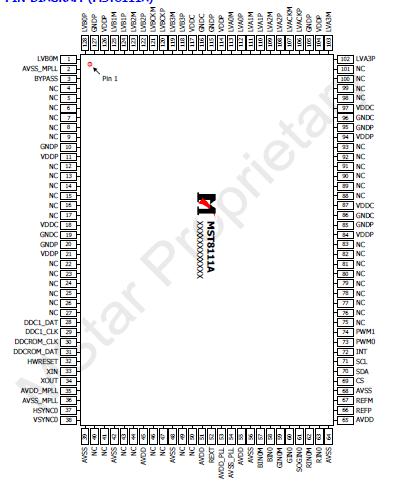

MST8111A Connection Diagram
