Features:

• Industry-standard x4 pinout, timing, functions, and packages
• High-performance, low-power CMOS silicon-gate process
• Single power supply (+3.3V ±0.3V or +5V ±0.5V)
• All inputs, outputs and clocks are TTL-compatible
• Refresh modes: RAS#-ONLY, HIDDEN and CAS#- BEFORE-RAS# (CBR)
• Optional self refresh (S) for low-power data retention
• 11 row, 11 column addresses (2K refresh) or 12 row, 10 column addresses (4K refresh)
• FAST-PAGE-MODE (FPM) access
• 5V tolerant inputs and I/Os on 3.3V devices



Pinout

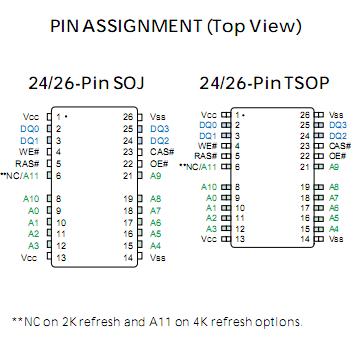

  Connection Diagram


Specifications

Voltage on VCC Pin Relative to VSS
3.3V......................................................................-1V to +4.6V
5V...........................................................................-1V TO +7V
Voltage on NC, Inputs or I/O Pins Relative to VSS
3.3V......................................................................-1V to +5.5V
5V................................................ ..........................-1V TO +7V
Operating Temperature, TA (ambient) ............ 0°C to +70°C
Storage Temperature (plastic) ....................-55°C to +150°C
Power Dissipation ...............................................................1W



Description

The 4 Meg x 4 DRAM MT4LC4M4B1 is a randomly accessed, solid- state memory containing 16,777,216 bits organized in a x4 configuration. RAS# is used to latch the row address (first 11 bits for 2K and first 12 bits for 4K). Once the page has been opened by RAS#, CAS# is used to latch the column address (the latter 11 bits for 2K and the latter 10 bits for 4K; address pins A10 and A11 are "Don't Care").

READ and WRITE cycles of MT4LC4M4B1 are selected with the WE# input. A logic HIGH on WE# dictates read mode, while a logic LOW on WE# dictates write mode. During a WRITE cycle, data-in (D) is latched by the falling edge of WE# or CAS#, whichever occurs last. If WE# goes LOW prior to CAS# going LOW, the output pins of MT4LC4M4B1 remain open (High- Z) until the next CAS# cycle, regardless of OE#.
