MT8816

Features:

• Internal control latches and address decoder
• Short set-up and hold times
• Wide operating voltage: 4.5V to 13.2V
• 12Vpp analog signal capability
• RON 65W max. @ V_DD=12V, 25
• DRON £10W @ V_DD=12V, 25
• Full CMOS switch for low distortion
• Minimum feedthrough and crosstalk
• Separate analog and digital reference supplies
• Low power consumption ISO-CMOS technology


Application

• Key systems
• PBX systems
• Mobile radio
• Test equipment/instrumentation
• Analog/digital multiplexers
• Audio/Video switching

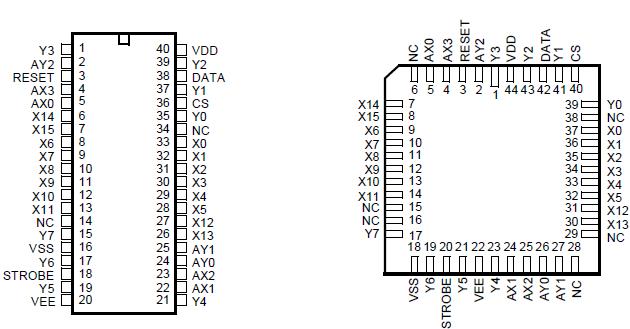

Pinout




Specifications

	Parameter	Symbol	Min	Max	Units
1	Supply Voltage	VDD VSS	-0.3 -0.3	16.0 VDD+0.3	V V
2	Analog Input Voltage	VINA	-0.3	VDD+0.3	V
3	Digital Input Voltage	VIN	VSS-0.3	VDD+0.3	V
4	Current on any I/O Pin	I		±15	mA
5	Storage Temperature	TS	-65	+150
6	Package Power Dissipation PLASTIC DIP CERDIP	PD PD		0.6 1.0	W W

Description

The Mitel MT8816 is fabricated in MITEL's ISOCMOS technology providing low power dissipation and high reliability.

The MT8816 contains a 8 x 16 array of crosspoint switches along with a 7 to 128 line decoder and latch circuits. Any one of the 128 switches can be addressed by selecting the appropriate seven address bits.

The selected switch MT8816 can be turned on or off by applying a logical one or zero to the DATA input. VSS is the ground refer-ence of the digital inputs. The range of the analog signal is from VDD to VEE. Chip Select (CS) of MT8816 allows the crosspoint array to be cascaded for matrix expansion.
