General Description
MT8870D General Description
The MT8870D/MT8870D-1 is a complete DTMF receiver integrating both the bandsplit filter and digital decoder functions. The filter section uses switched capacitor techniques for high and low group filters; the decoder uses digital counting techniques to detect and decode all 16 DTMF tonepairs into a 4-bit code. External component count is minimized by on chip provision of a differential input amplifier, clock oscillator and latched three-state bus interface.
MT8870D Maximum Ratings
| Parameter | Symbol | Min | Max | Units | |
| 1 | DC Power Supply Voltage | VDD |
7 | V | |
| 2 | Voltage on any pin(other than supply) | VI | VSS-0.3 | VDD+0.3 | V |
| 3 | Current On Any Pin | II | 10 | mA | |
| 4 | Storage temperature | TSTG | -65 | +150 | |
| 5 | Package power dissipation | PD |
500 |
mW |
MT8870D Features
• Complete DTMF Receiver
• Low power consumption
• Internal gain setting amplifier
• Adjustable guard time
• Central office quality
• Power-down mode
• Inhibit mode
• Backward compatible with MT8870C/MT8870C-1
• Low power consumption
• Internal gain setting amplifier
• Adjustable guard time
• Central office quality
• Power-down mode
• Inhibit mode
• Backward compatible with MT8870C/MT8870C-1
MT8870D Typical Application
• Receiver system for British Telecom (BT) or CEPT Spec (MT8870D-1)
• Paging systems
• Repeater systems/mobile radio
• Credit card systems
• Remote control
• Personal computers
• Telephone answering machine
• Paging systems
• Repeater systems/mobile radio
• Credit card systems
• Remote control
• Personal computers
• Telephone answering machine

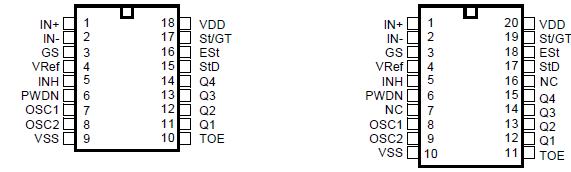

MT8870D Connection Diagram
