Part Number: MT8888C-1
Description: The MT8888C is a monolithic DTMF transceiver with call progress filter. It is fabricated in CMOS techn...
- Table of contents:
MT8888C-1
-
Suppliers
DataSheet
General Description
MT8888C-1 General Description
The MT8888C is a monolithic DTMF transceiver with call progress filter. It is fabricated in CMOS technology offering low power consumption and high reliability.The MT8888C utilizes an Intel micro interface, which allows the device to be connected to a number of popular microcontrollers with minimal external logic. The MT8888C-1 is functionally identical to the MT8888C except the receiver is enhanced to accept lower level signals, and also has a specified low signal rejection level.
MT8888C-1 Maximum Ratings
| Parameter | Symbol | Min | Max | Units | |
| 1 | Power supply voltage VDD-VSS | VDD |
6 | V | |
| 2 | Voltage on any pin | VI | VSS-0.3 | VDD+0.3 | V |
| 3 | Current On Any Pin(Except VDD and VSS) | 10 | mA | ||
| 4 | Storage temperature | TST | -65 | +150 | |
| 5 | Package power dissipation | PD |
1000 |
mW |
MT8888C-1 Features
• Central office quality DTMF transmitter/receiver
• Low power consumption
• High speed Intel micro interface
• Adjustable guard time
• Automatic tone burst mode
• Call progress tone detection to -30dBm
• Low power consumption
• High speed Intel micro interface
• Adjustable guard time
• Automatic tone burst mode
• Call progress tone detection to -30dBm
MT8888C-1 Typical Application
• Credit card systems
• Paging systems
• Repeater systems/mobile radio
• Interconnect dialers
• Personal computers
• Paging systems
• Repeater systems/mobile radio
• Interconnect dialers
• Personal computers

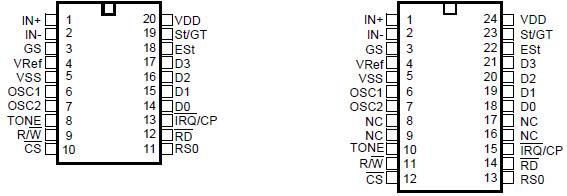

MT8888C-1 Connection Diagram
