Part Number: MT8931C
Description: The MT8931C Subscriber Network Interface Circuit (SNIC) implements the ETSI ETS 300-012, CCITT I.430 a...
- Table of contents:
MT8931C
-
Suppliers
DataSheet
General Description
MT8931C General Description
The MT8931C Subscriber Network Interface Circuit (SNIC) implements the ETSI ETS 300-012, CCITT I.430 and ANSI T1.605 Recommendations for the ISDN S and T reference points. Providing point-topoint and point-to-multipoint digital transmission, the SNIC may be used at either end of the subscriber line (NT or TE).
An HDLC D-channel protocoller is included and controlled through a Motorola/Intel microprocessor port.
The MT8931C is fabricated in Mitel's CMOS process.
MT8931C Maximum Ratings
| Parameters | Symbol | Min | Max | Units | |
| 1 | Supply Voltage | VDD | -0.3 | 7.0 | V |
| 2 | Voltage on any I/O pin | VI/O | -0.3 | VDD + 0.3 | V |
| 3 | Current on any I/O pin | II/O | 20 | mA | |
| 4 | Storage Temperature | TST | -65 | 150 | °C |
| 5 | Package Power Dissipation | PD | 1000 | mW |
MT8931C Features
• ETS 300-012, CCITT I.430 and ANSI T1.605 S/T interface
• Full-duplex 2B+D, 192 kbit/s transmission
• Link activation/deactivation
• D-channel access contention resolution
• Point-to-point, point-to-multipoint and star configurations
• Master (NT)/Slave (TE) modes of operation
• Exceeds loop length requirements
• Complete loopback testing capabilities
• On chip HDLC D-channel protocoller
• 8 bit Motorola/Intel microprocessor interface
• Microprocessor-controlled operation
• Mitel ST-BUS interface
• Low power CMOS technology
• Single 5 volt power supply
• Full-duplex 2B+D, 192 kbit/s transmission
• Link activation/deactivation
• D-channel access contention resolution
• Point-to-point, point-to-multipoint and star configurations
• Master (NT)/Slave (TE) modes of operation
• Exceeds loop length requirements
• Complete loopback testing capabilities
• On chip HDLC D-channel protocoller
• 8 bit Motorola/Intel microprocessor interface
• Microprocessor-controlled operation
• Mitel ST-BUS interface
• Low power CMOS technology
• Single 5 volt power supply
MT8931C Typical Application
• ISDN NT1
• ISDN S or T interface
• ISDN Terminal Adaptor (TA)
• Digital sets (TE1) - 4 wire ISDN interface
• Digital PABXs, Digital Line Cards (NT2)
• ISDN S or T interface
• ISDN Terminal Adaptor (TA)
• Digital sets (TE1) - 4 wire ISDN interface
• Digital PABXs, Digital Line Cards (NT2)

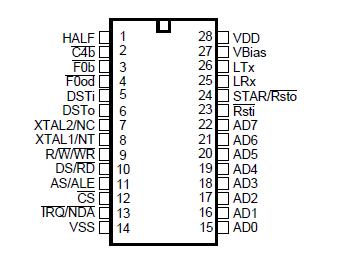

MT8931C Connection Diagram
MT8931C
