General Description
MT8972B General Description
The MT8971B (DSIC) and MT8972B (DNIC) are multi-function devices capable of providing high speed, full duplex digital transmission up to 160
kbit/s over a twisted wire pair. They use adaptive echo-cancelling techniques and transfer data in (2B+D) format compatible to the ISDN basic rate. Several modes of operation allow an easy interface to digital telecommunication networks including use as a high speed limited distance modem with data rates up to 160 kbit/s. Both devices function identically but with the DSIC having a shorter maximum loop reach specification. The generic
"DNIC" will be used to reference both devices unless otherwise noted.
The MT8971B/72B is fabricated in Mitel's ISO2-CMOS process.
MT8972B Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Units | |
| 1 | Supply Voltage | VDD | -0.3 | 7 | V |
| 2 | Voltage on any pin (other than supply) | VMax | -0.3 | VDD+0.3 | V |
| 3 | Current on any pin (other than supply) | IMax | 40 | mA | |
| 4 | Storage Temperature | TST | -65 | +150 | °C |
| 5 | Package Power Dissipation (Derate 16mW/°C above 75°C) | PDiss | 750 | mW |
* Exceeding these values may cause permanent damage. Functional operation under these conditions is not implied.
MT8972B Features
• Full duplex transmission over a single twisted
pair
• Selectable 80 or 160 kbit/s line rate
• Adaptive echo cancellation
• Up to 3km (8971B) and 4 km (8972B)
• ISDN compatible (2B+D) data format
• Transparent modem capability
• Frame synchronization and clock extraction
• MITEL ST-BUS compatible
• Low power (typically 50 mW), single 5V supply
pair
• Selectable 80 or 160 kbit/s line rate
• Adaptive echo cancellation
• Up to 3km (8971B) and 4 km (8972B)
• ISDN compatible (2B+D) data format
• Transparent modem capability
• Frame synchronization and clock extraction
• MITEL ST-BUS compatible
• Low power (typically 50 mW), single 5V supply
MT8972B Typical Application
• Digital subscriber lines
• High speed data transmission over twisted
wires
• Digital PABX line cards and telephone sets
• 80 or 160 kbit/s single chip modem
• High speed data transmission over twisted
wires
• Digital PABX line cards and telephone sets
• 80 or 160 kbit/s single chip modem

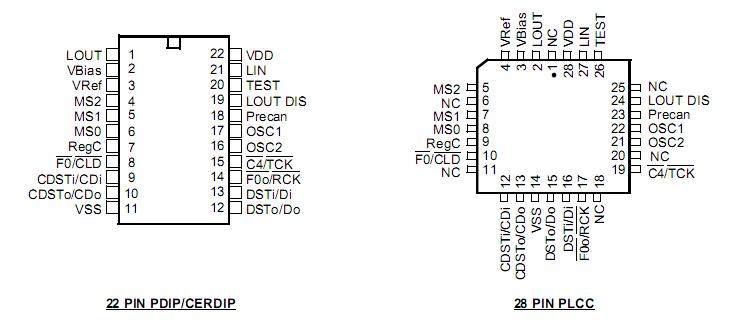

MT8972B Connection Diagram
MT8972B
