General Description
MT9041B General Description
The MT9041B T1/E1 System Synchronizer contains a digital phase-locked loop (DPLL), which provides timing and synchronization signals for multitrunk T1 and E1 primary rate transmission links.
The MT9041B generates ST-BUS clock and framing signals that are phase locked to either a 2.048MHz, 1.544MHz, or 8kHz input reference.
The MT9041B is compliant with AT&T TR62411 and Bellcore GR-1244-CORE Stratum 4 Enhanced, Stratum 4, and ETSI ETS 300 011. It will meet the jitter tolerance, jitter transfer, intrinsic jitter, frequency accuracy, capture range and phase change slope requirements for these specifications.
MT9041B Maximum Ratings
| Parameter | Symbol | Min | Max | Units | |
| 1 | Supply voltage | VDD | -0.3 | 7.0 | V |
| 2 | Voltage on any pin | VPIN | -0.3 | VDD+0.3 | V |
| 3 | Current on any pin | IPIN | 20 | mA | |
| 4 | Storage temperature | TST | -55 | 125 | |
| 5 | PLCC package power dissipation | PPD | 900 | mW |
* Exceeding these values may cause permanent damage. Functional operation under these conditions is not implied.
MT9041B Features
• Supports AT&T TR62411 and Bellcore GR-1244-CORE Stratum 4 Enhanced and Stratum 4 timing for DS1 Interfaces
• Supports ETSI ETS 300 011, TBR 4, TBR 12 and TBR 13 timing for E1 Interfaces
• Selectable 1.544MHz, 2.048MHz or 8kHz input reference signals
• Provides C1.5, C2, C3, C4, C8 and C16 output clock signals
• Provides 3 different styles of 8 KHz framing pulses
• Attenuates wander from 1.9 Hz
• Supports ETSI ETS 300 011, TBR 4, TBR 12 and TBR 13 timing for E1 Interfaces
• Selectable 1.544MHz, 2.048MHz or 8kHz input reference signals
• Provides C1.5, C2, C3, C4, C8 and C16 output clock signals
• Provides 3 different styles of 8 KHz framing pulses
• Attenuates wander from 1.9 Hz
MT9041B Typical Application
• Synchronization and timing control for multitrunk T1 and E1 systems
• ST-BUS clock and frame pulse sources
• ST-BUS clock and frame pulse sources

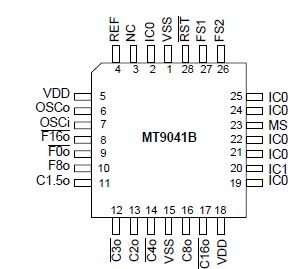

MT9041B Connection Diagram
