MT90710
-
Suppliers
DataSheet
General Description
MT90710 General Description
The High-Speed Isochronous Multiplexer integrated circuit multiplexes up to eight Serial Telecom (ST-BUS) links onto a single 20 MHz loop to facilitate point-to-point data transport requirements. The MT90710 connects easily with standard Fiber Optic interfaces to form a complete electric to photonic conversion circuit. Optical transmission allows large bandwidth inter-shelf or, in distributed systems, inter-node communication by eliminating multiple data buses, cable inter-connect and attendant driver interfaces. The final result is a simple physical interface free of the radiated emissions and background noise susceptibility problems encountered in copper-wired environments.
MT90710 Maximum Ratings
| Parameter | Symbol | Min | Max | Units | |
| 1 | DC Supply Voltage | VDD | - 0.3 | 7 | V |
| 2 | Input Voltage | VI | VSS-0.3 | VDD + 0.3 | V |
| 3 | DC Input Current | II | +/- 50 | mA | |
| 4 | Storage Temperature | Tstg | -65 | + 150 |
MT90710 Features
• Multiplexes eight 2.048 Mbit/s, ST-BUS links onto one serial high-speed 20.48 Mbit/s link
• 15.808 Mbit/s clear bandwidth transport
• Two 8 kbit/s and one 32 kbit/s oversampled signalling channels
• Embedded system timing and frame synchronization
• Frame buffer control signals generated on-chip
• Check-sum generated on multiplexed frame
• Remote synchronization indication
• Both master and slave timing mode operation
• On-chip reference generation for slave mode synchronization
• 4B/5B data encoding/decoding
• 15.808 Mbit/s clear bandwidth transport
• Two 8 kbit/s and one 32 kbit/s oversampled signalling channels
• Embedded system timing and frame synchronization
• Frame buffer control signals generated on-chip
• Check-sum generated on multiplexed frame
• Remote synchronization indication
• Both master and slave timing mode operation
• On-chip reference generation for slave mode synchronization
• 4B/5B data encoding/decoding
MT90710 Typical Application
• Fibre distributed sytems
• Backplane concentrators
• Local Area Networks (LANs)
• Backplane concentrators
• Local Area Networks (LANs)

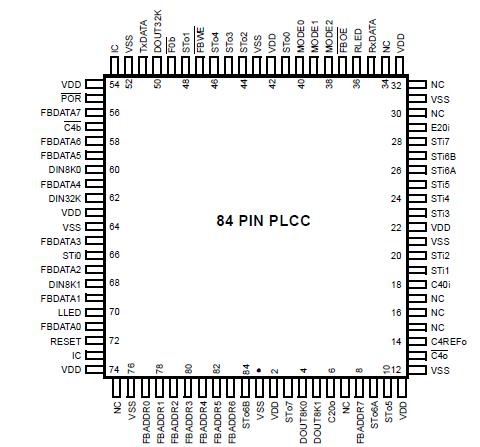

MT90710 Connection Diagram
MT90710
PDF/DataSheet Download
- Datasheet: MT90710
- File Size: 116392 KB
- Manufacturer: MITEL [Mitel Networks Corporation]
- Click here to Download
