General Description
MT90826AL1 General Description
The MT90826 Quad Digital Switch has a non-blocking switch capacity of 4,096 x 4,096 channels at a serial bit rate of 8.192 Mbps or 16.384 Mbps, 2,048 x 2,048 channels at 4.096 Mbps and 1024 x 1024 channels at 2.048 Mbps. The device has many features that are programmable on a per stream or per channel basis, including message mode, input offset delay and high impedance output control.
The per stream input and output delay control is particularly useful for managing large multi-chip switches with a distributed backplane.
Operating in Split Rate mode allows rate conversion for switching between two groups of bit rate streams.
MT90826AL1 Maximum Ratings
| Parameter | Symbol | Min | Max | Units | |
| 1 | Supply Voltage | VDD | -0.3 | 5.0 | V |
| 2 | Voltage on any 3.3V tolerant pin I/O (other than supply pins) |
VI | VSS - 0.3 | VDD + 0.3 | V |
| 3 | Voltage on any 5V tolerant pin I/O (other than supply pins) |
VI | VSS - 0.3 | 5.0 | V |
| 4 | Continuous Current at digital outputs | Io | 20 | mA | |
| 5 | Package power dissipation | PD | 1 | W | |
| 6 | Storage temperature | TS | - 65 | +125 |
MT90826AL1 Features
• 4,096 × 4,096 channel non-blocking switching at 8.192 or 16.384 Mbps
• Per-channel variable or constant throughput delay
• Accepts 32 ST-BUS streams of 2.048 Mbps, 4.096 Mbps, 8.192 Mbps or 16.384 Mbps
• Split Rate mode provides a rate conversion option to convert data from one rate to another rate
• Automatic frame offset delay measurement for ST-BUS input streams
• Per-stream input delay programming
• Per-stream output advancement programming
• Per-channel high impedance output control
• Bit Error Monitoring on selected ST-BUS input and output channels.
• Per-channel message mode
• Connection memory block programming
• IEEE-1149.1 (JTAG) Test Port
• 3.3 V local I/O with 5 V tolerant inputs and TTL compatible outputs
• Per-channel variable or constant throughput delay
• Accepts 32 ST-BUS streams of 2.048 Mbps, 4.096 Mbps, 8.192 Mbps or 16.384 Mbps
• Split Rate mode provides a rate conversion option to convert data from one rate to another rate
• Automatic frame offset delay measurement for ST-BUS input streams
• Per-stream input delay programming
• Per-stream output advancement programming
• Per-channel high impedance output control
• Bit Error Monitoring on selected ST-BUS input and output channels.
• Per-channel message mode
• Connection memory block programming
• IEEE-1149.1 (JTAG) Test Port
• 3.3 V local I/O with 5 V tolerant inputs and TTL compatible outputs
MT90826AL1 Typical Application
• Medium switching platforms
• CTI application
• Voice/data multiplexer
• Digital cross connects
• WAN access system
• Wireless base stations
• CTI application
• Voice/data multiplexer
• Digital cross connects
• WAN access system
• Wireless base stations

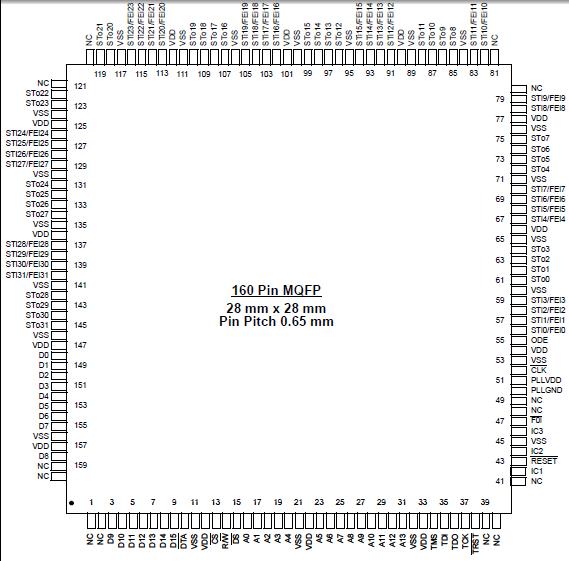

MT90826AL1 Connection Diagram
