MFG:MT Package Cooled:PLCC84 D/C:07/08+
MFG: MT
Package Cooled: PLCC84
D/C: 07/08+

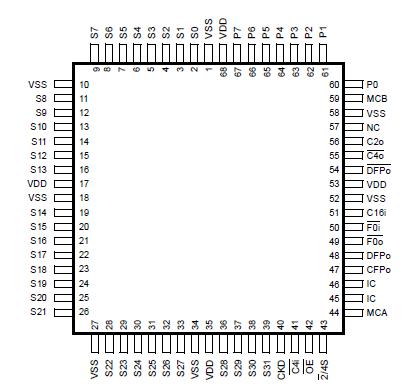

Description: The MT9085 Parallel Access Circuit (PAC) provides an interface between an 8 bit, parallel time divisio...
The MT9085 Parallel Access Circuit (PAC) provides an interface between an 8 bit, parallel time division multiplexed bus and a serial time division multiplexed bus. A single PAC device will accept data clocked out on the parallel bus of the Mitel MT9080 (SMX) and output it on 32/16 time division multiplexed serial bus streams. A second device can be configured to perform the conversion from the serial format into an SMX compatible parallel format. The time division, serial multiplexed streams may operate at 2.048 Mbit/s or at 4.096 Mbit/s. The PAC generates all framing signals required by the SMX for 1024 and 2048 channel configurations.
|
Parameter |
Symbol |
Min |
Max |
Units | |
|
1 |
VDD-VSS |
- 0.3 |
7 |
V | |
|
2 |
Voltage on Digital Inputs |
Vi |
VSS-0.3 |
VDD+0.3 |
V |
|
3 |
Voltage on Digital Outputs |
Vo |
VSS-0.3 |
VDD+0.3 |
V |
|
4 |
Current at Digital Outputs |
Io |
40 |
mA | |
|
5 |
Storage Temperature |
TS |
-40 |
125 |
|
|
6 |
Package Power Dissipation |
PD |
2 |
W |
• Configurable for parallel-to-serial or serial-to-parallel conversion of 1024 channels
• Interfaces to Mitel's MT9080 Switch Matrix Module (SMX). Generates all framing signals required in 1K or 2K switching applications
• Serial data rates of 2.048 Mbit/s or 4.096 Mbit/s
• Mitel ST-BUSä compatible serial inputs/outputs
MT9085
PDF/DataSheet Download
