MT9171
-
Suppliers
DataSheet
General Description
MT9171 General Description
The MT9171 (DSIC) and MT9172 (DNIC) are multifunction devices capable of providing high speed, full duplex digital transmission up to 160 kbit/s over a twisted wire pair. They use adaptive echocancelling techniques and transfer data in (2B+D) format compatible to the ISDN basic rate. Several modes of operation allow an easy interface to digital telecommunication networks including use as a high speed limited distance modem with data rates up to 160 kbit/s. Both devices function identically but with the DSIC having a shorter maximum loop reach specification. The generic "DNIC" will be used to reference both devices unless otherwise noted. The MT9171/72 is fabricated in Mitel's ISO2-CMOS process.
MT9171 Maximum Ratings
| Parameter | Symbol | Min. | Max. | Units | |
| 1 | Supply Voltage | VDD | -0.3 | 7 | V |
| 2 | Voltage on any pin (other than supply) | VMax | -0.3 | VDD + 0.3 | V |
| 3 | Current on any pin (other than supply) | IMax | 40 | mA | |
| 4 | Storage Temperature | TST | - 65 | + 150 | |
| 6 | Package Power Dissipation (Derate 16mW/°C above 75°C) | PDiss | 750 | mW |
MT9171 Features
• Full duplex transmission over a single twisted pair
• Selectable 80 or 160 kbit/s line rate
• Adaptive echo cancellation
• Up to 3km (9171) and 4 km (9172)
• ISDN compatible (2B+D) data format
• Transparent modem capability
• Frame synchronization and clock extraction
• MITEL ST-BUS compatible
• Low power (typically 50 mW), single 5V supply
• Selectable 80 or 160 kbit/s line rate
• Adaptive echo cancellation
• Up to 3km (9171) and 4 km (9172)
• ISDN compatible (2B+D) data format
• Transparent modem capability
• Frame synchronization and clock extraction
• MITEL ST-BUS compatible
• Low power (typically 50 mW), single 5V supply
MT9171 Typical Application
• Digital subscriber lines
• High speed data transmission over twisted wires
• Digital PABX line cards and telephone sets
• 80 or 160 kbit/s single chip modem
• High speed data transmission over twisted wires
• Digital PABX line cards and telephone sets
• 80 or 160 kbit/s single chip modem

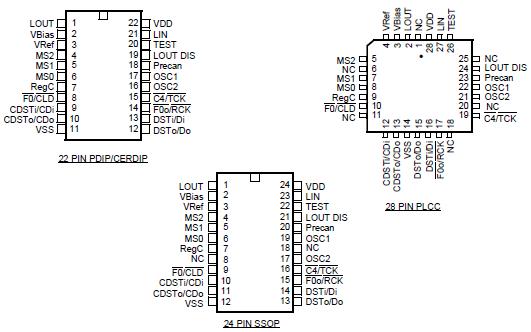

MT9171 Connection Diagram
MT9171
PDF/DataSheet Download
- Datasheet: MT9171
- File Size: 402728 KB
- Manufacturer: ZARLINK [Zarlink Semiconductor Inc]
- Click here to Download
