Product Details

Description



Features:

• Receive sync output pulse
• Full duplex transmission over a single twisted pair
• Selectable 80 or 160 kbit/s line rate
• Adaptive echo cancellation
• Up to 4 km loop reach
• ISDN compatible (2B+D) data format
• Transparent modem capability
• Frame synchronization and clock extraction
• MITEL ST-BUS compatible
• Low power (typically 50 mW), single 5V supply


Application

• TDD Digital PCS (DECT, CT2, PHS) base stations requiring cell synchronization
• Digital subscriber lines
• High speed data transmission over twisted wires
• Digital PABX line cards and telephone sets
• 80 or 160 kbit/s single chip modem

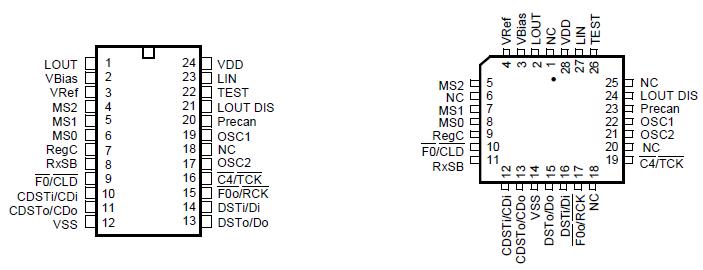

Pinout

Connection Diagram


Description

The MT9174 is identical to the MT9172 in all respects except for the addition of one feature. The MT9174 includes a digital output pin indicating the temporal position of the "SYNC" bit of the biphase transmission. This feature is especially useful for systems such as PCS wireless base stations applications requiring close synchronization between microcells.

The MT9174 is fabricated in Mitel's ISO2-CMOS process.
