Part Number: MT9196
Description: The MT9196 Integrated Digital Phone Circuit (IDPC) is designed for use in digital phone products. The ...
- Table of contents:
MT9196
-
Suppliers
DataSheet
General Description
MT9196 General Description
The MT9196 Integrated Digital Phone Circuit (IDPC) is designed for use in digital phone products. The device incorporates a built-in Filter/Codec, digital gain pads, DTMF generator and tone ringer. Complete telephony interfaces are provided for connecting to handset and speakerphone transducers. Internal register access is provided through a serial microport compatible with various industry standard micro-controllers. The device is fabricated in Mitel's ISO2-CMOS technology ensuring low power consumption and high reliability.
MT9196 Maximum Ratings
| Parameter | Symbol | Min. | Max. | Units | |
| 1 | Supply Voltage | VDD - VSS | -0.3 | 7 | V |
| 2 | Voltage on any I/O pin | VI/VO | VSS - 0.3 | VDD + 0.3 | V |
| 3 | Current on any I/O pin(transducers excluded) | II/IO | ± 20 | mA | |
| 4 | Storage Temperature | TS | - 65 | + 150 | |
| 6 | Power Dissipation (package) | PD | 750 | mW |
MT9196 Features
• Programmable m-Law/A-Law CODEC and Filters
• Programmable CCITT (G.711)/sign-magnitude coding
• Programmable transmit, receive and side-tone gains
• Digital DTMF and single tone generation
• Fully differential interface to handset transducers
• Auxiliary analog interface
• Interface to ST-BUS/SSI (compatible with GCI)
• Serial microport control
• Single 5 volt supply, low power operation
• Anti-howl circuit for group listening speakerphone applications
• Programmable CCITT (G.711)/sign-magnitude coding
• Programmable transmit, receive and side-tone gains
• Digital DTMF and single tone generation
• Fully differential interface to handset transducers
• Auxiliary analog interface
• Interface to ST-BUS/SSI (compatible with GCI)
• Serial microport control
• Single 5 volt supply, low power operation
• Anti-howl circuit for group listening speakerphone applications
MT9196 Typical Application
• Digital telephone sets
• Wireless telephones
• Local area communications stations
• Wireless telephones
• Local area communications stations

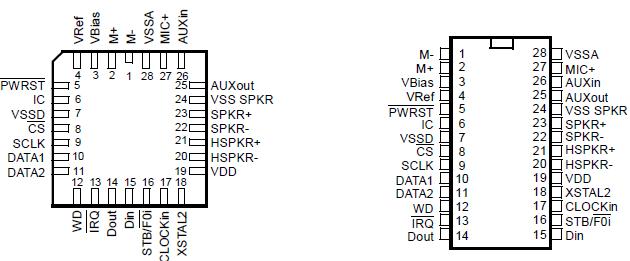

MT9196 Connection Diagram
MT9196
