Purchase MT9315, In-stock MT9315 From SeekIC.
- Table of contents:
MT9315
-
Suppliers
DataSheet
General Description
MT9315 Maximum Ratings
| Parameter | Symbol | Min | Max | Units | |
| 1 | Supply Voltage | VDD-VSS | -0.3 | 7 | V |
| 2 | Input Voltage | Vi | VSS-0.3 | VDD+ 0.3 | V |
| 3 | Output Voltage Swing | Vo | VSS-0.3 | VDD+ 0.3 | V |
| 4 | Continuous Current on any digital pin | Ii/o | ±20 | mA | |
| 5 | Storage Temperature | TST | -65 | 150 | °C |
| 6 | Package Power Dissipation | PD(5v) | 500 | mW |
MT9315 Features
• Contains two echo cancellers: 112ms acoustic
echo canceller + 16ms line echo canceller
• Works with low cost voice codec. ITU-T G.711
or signed mag m/A-Law, or linear 2's comp
• Each port may operate in different format.
• Advanced NLP design - full duplex speech with
no switched loss on audio paths
• Fast re-convergence time: tracks changing
echo environment quickly
• Adaptation algorithm converges even during Double-Talk
• Designed for exceptional performance in high
background noise environments
• Provides protection against narrow-band signal divergence
• Howling prevention stops uncontrolled
oscillation in high loop gain conditions
• Offset nulling of all PCM channels
• Serial micro-controller interface
• ST-BUS or variable-rate SSI PCM interfaces
• User gain control provided for speaker path
(-24dB to +21dB in 3dB steps)
• AGC on speaker path
• Handles up to 0 dB acoustic echo return loss
and 0dB line ERL
• Transparent data transfer and mute options
• 20 MHz master clock operation
• Low power mode during PCM Bypass
echo canceller + 16ms line echo canceller
• Works with low cost voice codec. ITU-T G.711
or signed mag m/A-Law, or linear 2's comp
• Each port may operate in different format.
• Advanced NLP design - full duplex speech with
no switched loss on audio paths
• Fast re-convergence time: tracks changing
echo environment quickly
• Adaptation algorithm converges even during Double-Talk
• Designed for exceptional performance in high
background noise environments
• Provides protection against narrow-band signal divergence
• Howling prevention stops uncontrolled
oscillation in high loop gain conditions
• Offset nulling of all PCM channels
• Serial micro-controller interface
• ST-BUS or variable-rate SSI PCM interfaces
• User gain control provided for speaker path
(-24dB to +21dB in 3dB steps)
• AGC on speaker path
• Handles up to 0 dB acoustic echo return loss
and 0dB line ERL
• Transparent data transfer and mute options
• 20 MHz master clock operation
• Low power mode during PCM Bypass
MT9315 Typical Application
• Full duplex speaker-phone for digital telephone
• Echo cancellation for video conferencing
• Handsfree in automobile environment
• Full duplex speaker-phone for PCA
• Echo cancellation for video conferencing
• Handsfree in automobile environment
• Full duplex speaker-phone for PCA

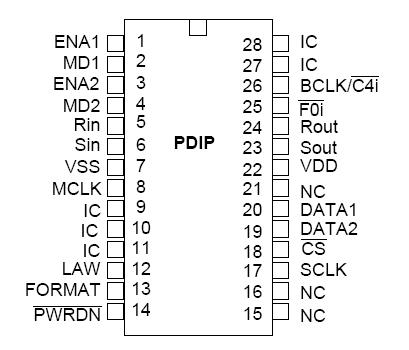

MT9315 Connection Diagram
MT9315
PDF/DataSheet Download
- Datasheet: MT9315
- File Size: 215442 KB
- Manufacturer: Zarlink
- Click here to Download
