Purchase MT933, In-stock MT933 From SeekIC.
Package Cooled:QFP D/C:00+
Part Number: MT933
Package Cooled: QFP
D/C: 00+
Description: The MT933 is a single chip 3.3V CMOS physical layer solution from MII to the magnetics. It is designed...
- Table of contents:
MT933
-
Suppliers
DataSheet
General Description
MT933 General Description
The MT933 is a single chip 3.3V CMOS physical layer solution from MII to the magnetics. It is designed for 10BASE-T and 100BASE-TX Ethernet, based on the IEEE 802.3 specifications. The MT933 is compatible with the Auto Negotiation section of IEEE 802.3u and provides all the support needed for the 802.3 Full duplex specification.
MT933 Features
· Integrated 10/100 Mbps Ethernet in a Single Chip Solution
· Single 3.3V Power Supply
· Half Duplex and Full Duplex in both 10BASE-T and 100BASE-TX
· Full MII for a Glueless MAC Connection
· Extended Register Set
· Integrated 10BASE-T Transceivers and Receive / Transmit Filters
· Integrated Adaptive Equaliser and Base Line Wander Correction (for FDDI Killer Packet)
· Full Auto-Negotiation Support for 10BASE-T and 100BASE-TX both Half and Full Duplex
· Link Status Change Interrupt
· Parallel Detection for Supporting Non Auto Negotiation in Legacy Link Partners
· Low Dynamic Current
· Deep Sleep Low Power Mode <1mA
· Internal Power on Reset
· 64 pin 1mm thick TQFP Package
· Single Magnetics for 10BASE-T and 100BASE-TX Operation for a Single RJ45 Connector
· Support for Flow Control 802.3 Specification
· Integrated 6 LED Driver
· Single 3.3V Power Supply
· Half Duplex and Full Duplex in both 10BASE-T and 100BASE-TX
· Full MII for a Glueless MAC Connection
· Extended Register Set
· Integrated 10BASE-T Transceivers and Receive / Transmit Filters
· Integrated Adaptive Equaliser and Base Line Wander Correction (for FDDI Killer Packet)
· Full Auto-Negotiation Support for 10BASE-T and 100BASE-TX both Half and Full Duplex
· Link Status Change Interrupt
· Parallel Detection for Supporting Non Auto Negotiation in Legacy Link Partners
· Low Dynamic Current
· Deep Sleep Low Power Mode <1mA
· Internal Power on Reset
· 64 pin 1mm thick TQFP Package
· Single Magnetics for 10BASE-T and 100BASE-TX Operation for a Single RJ45 Connector
· Support for Flow Control 802.3 Specification
· Integrated 6 LED Driver

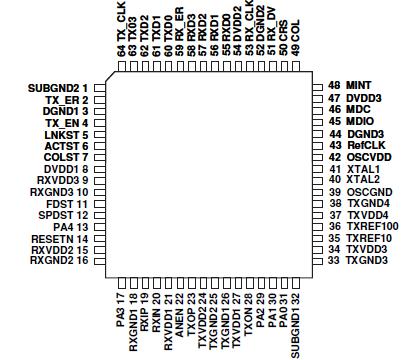

MT933 Connection Diagram
MT933
PDF/DataSheet Download
- Datasheet: MT933
- File Size: 369210 KB
- Manufacturer: ZARLINK [Zarlink Semiconductor Inc]
- Click here to Download
