Product Details

Description



Features:

·Four output driver per package
·TTL/CMOS compatible inputs (Low active)


Application

·Head needle drive for printer
·Stepping motor drive for office automation products

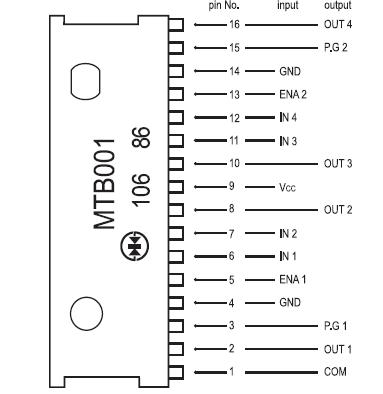

Pinout

Connection Diagram


Specifications

Item Symbol Ratings Unit
Output Voltage VCEO(SUS) 80 V
Output Current IO 4 A
Reverse Voltage(flyback diode) VR 80 V
Forward Current(each flyback diode) IF 4 A
Forward Current(each common terminal) IF 18 A
Output Current(each GND terminal) IGND 10 A
Logic Supply Voltage VCC 0~7 V
Logic Input Voltage VIN 0~VCC V
Enable Input Voltage VENA 0~VCC V
Total Power Dissipation PT 5 W
Junction Temperature Tj 150
Storage Temperature Tstg -40~150
