MTD2006F
-
Suppliers
DataSheet
General Description
MTD2006F Maximum Ratings
|
Item |
Symbol |
Ratings |
Unit |
| Output Voltage |
Vmm |
35 |
V |
| Output Current |
IOUT |
1.3 |
A |
| Logic supply |
Vcc |
6 |
V |
| Logic input voltage |
VLOGIC |
0 to Vcc |
V |
| Power dissipation* |
PT |
3 |
W |
| Strage temperature range |
Tstg |
-40~150 |
|
| Junction temperature range |
Tj |
150 |
MTD2006F Features
·Dual full-bridge for a bipolar stepper motor
·Constant current control (fixed frequency PWM control)
·Current decay selection (correspond to microstepping drive)
·Noise cancellation function (no need external RC)
·Integrated flywheel and flyback diodes
·Cross conduction protection
·Overheating alarm function
·Surface mount type package with heatsink (HSOP28)
·Constant current control (fixed frequency PWM control)
·Current decay selection (correspond to microstepping drive)
·Noise cancellation function (no need external RC)
·Integrated flywheel and flyback diodes
·Cross conduction protection
·Overheating alarm function
·Surface mount type package with heatsink (HSOP28)

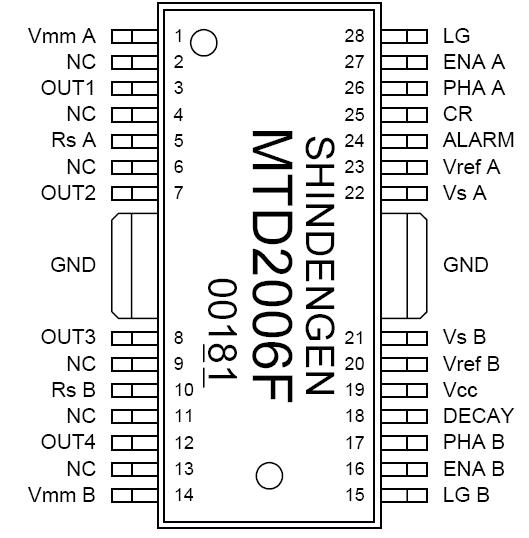

MTD2006F Connection Diagram
MTD2006F
PDF/DataSheet Download
- Datasheet: MTD2006F
- File Size: 94358 KB
- Manufacturer: SHINDENGEN [Shindengen Electric Mfg.Co.Ltd]
- Click here to Download
