Part Number: MTD505









Description: The MTD505 complies fully with the IEEE802.3, 802.3u and 802.3x specifications and is a non-blocking 5 port 10M/100M Et...


Urgent Purchase

MTD505 General Description


The MTD505 complies fully with the IEEE802.3, 802.3u and 802.3x specifications and is a non-blocking 5 port 10M/100M Ethernet switch device.

Support 4 RMII and 1 MII/RMII ports for 10M/100M operation. 1MByte/2MBytes memory interface provides maximum 1365 packet buffers for Ethernet packet buffering. Up to 8192 address entrys are provided by the MTD505, and the MTD505 use full Ethernet address compare algorithm to minimize hashing collision events.

The MTD505 provides EEPROM interface to config port trunking, port VLAN, static entry, 802.3x flow control threshold, flooding port, broadcast control threshold. Each MTD505 port support 10/100M auto-negotiation by MDC/MDIO interface for connecting external PHY devices.

The MTD505 also provides 10 pins for Link/RX activity, packet buffer utilization LED display function.

MTD505 Maximum Ratings

Symbol
Parameter
RATING
Unit
VCC Power Supply Voltage
-0.3 to 3.6
V
VIN Input Voltage
-0.3 to Vcc+0.3
V
VOUT Output Voltage
-0.3 to Vcc+0.3
V
TSTG Storage Temperature
-55 to 150

MTD505 Features

• IEEE802.3 and IEEE802.3u compliant.
• Provide 4 RMII and 1 MII/RMII ports.
• Programmable 1K/8K MAC addresses filtering.
• Store and forward switching function and bad packet filtering function.
• Optional back_pressure/802.3x flow control/ flooding control/broadcast control.
• Optional EEPROM Interface for advanced switch configurations.
• 1MB/2MB SGRAM/SDRAM flexible memory interface.
• Port VLAN/trunking.
• Link/Rx activity, packet buffer utilization LED display.
• 50MHz for non-blocking for 5 ports switch operation
• Build in internal/external memory test function.
• 128 pin PQFP package, 3.3V operation voltage.

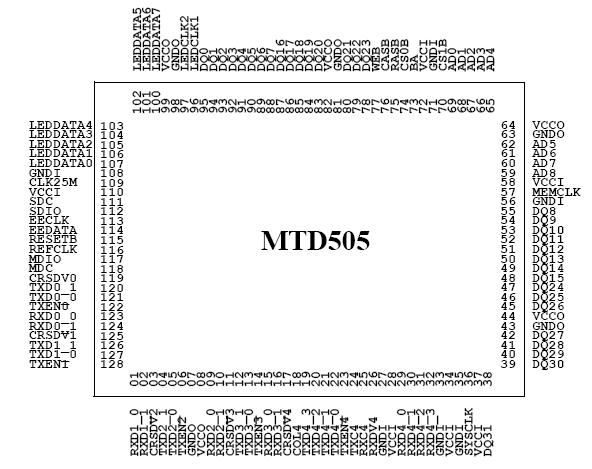

MTD505 Connection Diagram

MTD505 Connection Diagram
