Part Number: MTD658E
MFG: MYSON
D/C: 00+
Description: The MTD658E is a highly integrated, 10M/ 100M dual speed hub with build_in 2 port switch and 64k8 embe...
- Table of contents:
MTD658E
-
Suppliers
DataSheet
General Description
MTD658E General Description
The MTD658E is a highly integrated, 10M/ 100M dual speed hub with build_in 2 port switch and 64k8 embedded ASRAM. Support 8 RMII ports for 10M/100M operation, and really meet 100M_hub class_2 spec when connect with external QPHYceivers.
The MTD658E provides two Inter-repeater stacking bus for 10M and 100M expansion each, easily stack to 4 units without any external arbitration logic. If using external arbitration logic and proper bus driver, can stack to 6 units and up.
The build_in 2 port switch, support 2k MAC addresses filtering, and use embedded asynchronous high speed SRAM (64k*8) for packet buffering. This 2 port switch can also be configured to be up_link switch when hub is under slave mode.
The MTD658E also support an simple and effective LED display function, provide 10M_col, 100M_col, and per port's partition status.
MTD658E Maximum Ratings
| Symbol | Parameter | RATING | Unit |
| VCC | Power Supply Voltage | 0.3 to 3.6 | V |
| VIN | Input Voltage | -0.3 to Vcc+0.3 | V |
| VOUT | Output Voltage | -0.3 to Vcc+0.3 | V |
| TSTG | Storage Temperature | -55 to 150 |
MTD658E Features
• IEEE802.3 Clause 9 and IEEE802.3u Cluse 27 compliant.
• Provide 8 RMII (8 port mode), or 4 RMII + 1 MII (5 port mode).
• Provide 2 inter_repeater stacking bus for 10M and 100M port expansion each.
• Support stacking to 4 units without any external arbitration logic ( if use external arbitration logic, theoretically can stack to 6 units and up) .
• Build_in 2 port switch controller, support up to 2048 MAC addresses filtering database.
• Optional back_pressure flow control.
• Optional up_link_switch port function (in slave hub), support 100FX 2km distance extension in 100FD mode.
• Meet Class_2 repeater specification for 100M_hub.
• Pin compatible with MTD658/655 application, no need any external memory buffers.
• 128 pin QFP package, 3.3V operation voltage.
• Provide 8 RMII (8 port mode), or 4 RMII + 1 MII (5 port mode).
• Provide 2 inter_repeater stacking bus for 10M and 100M port expansion each.
• Support stacking to 4 units without any external arbitration logic ( if use external arbitration logic, theoretically can stack to 6 units and up) .
• Build_in 2 port switch controller, support up to 2048 MAC addresses filtering database.
• Optional back_pressure flow control.
• Optional up_link_switch port function (in slave hub), support 100FX 2km distance extension in 100FD mode.
• Meet Class_2 repeater specification for 100M_hub.
• Pin compatible with MTD658/655 application, no need any external memory buffers.
• 128 pin QFP package, 3.3V operation voltage.

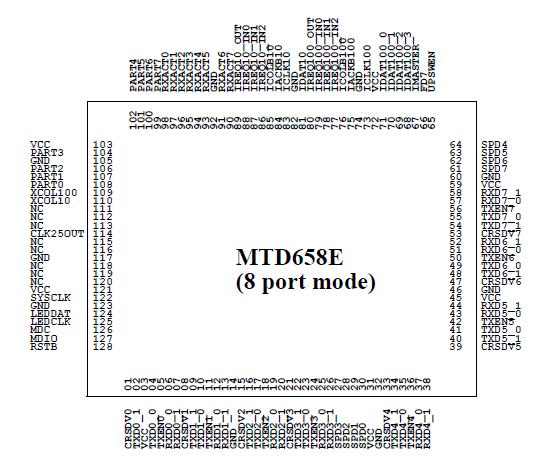

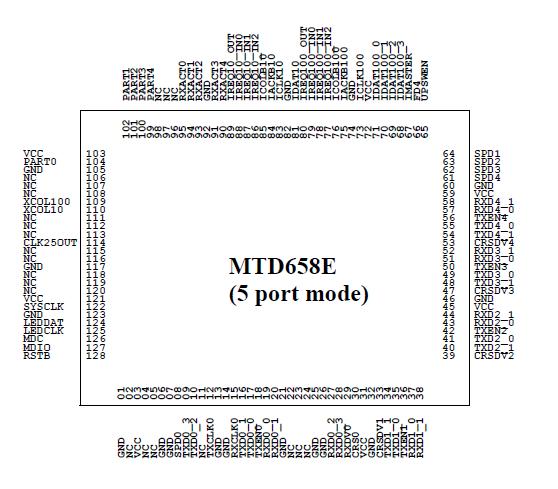

MTD658E Connection Diagram
MTD658E
PDF/DataSheet Download
- Datasheet: MTD658E
- File Size: 531211 KB
- Manufacturer: ETC [ETC]
- Click here to Download
