Purchase MTV012E, In-stock MTV012E From SeekIC.
MFG:MYSON
Part Number: MTV012E
MFG: MYSON
Description: The MTV012E micro-controller is an 8051 CPU core-embedded device specially tailored to CRT monitor app...
- Table of contents:
MTV012E
-
Suppliers
DataSheet
General Description
MTV012E General Description
The MTV012E micro-controller is an 8051 CPU core-embedded device specially tailored to CRT monitor applications. It includes an 8051 CPU core, 256-byte SRAM, 14 built-in PWM DACs, DDC1/DDC2B interface, 24Cxx series EEPROM interface and an 8K-byte internal program EPROM.
MTV012E Maximum Ratings
at:Ta= 0 to 70 C, VSS=0V
|
Name |
Symbol |
Range |
Unit |
| Maximum Supply Voltage Maximum Input Voltage Maximum Output Voltage Maximum Operating Temperature Maximum Storage Temperature |
VDD Vin Vout Topg Tstg |
-0.3 to +6.0 0.3 to VDD+0.3 0.3 to VDD+0.3 0 to +70 -25 to +125 |
V V V |
MTV012E Features
·8051 core.
·256 bytes internal RAM.
·8K bytes program EPROM.
·14 channels 12V open drain PWM DAC, 10 dedicated channels and 4 channels shared with I/O pin.
·20 bi-direction I/O pin, 12 dedicated pin, 4 shared with DAC, 4 shared with DDC/IIC interface.
·3 output pin shared with H/V sync output and self test output pins.
·SYNC processor for composite separation, polarity and frequency check, and polarity adjust.
·Built-in monitor self test pattern generator.
·Built-in Low Power Reset circuit.
·IIC interface for DDC1/DDC2B and EEPROM, only one EEPROM needed to store DDC1/DDC2B and
·display mode information.
·Watch dog timer with programmable interval.
·40 pin PDIP package.
·256 bytes internal RAM.
·8K bytes program EPROM.
·14 channels 12V open drain PWM DAC, 10 dedicated channels and 4 channels shared with I/O pin.
·20 bi-direction I/O pin, 12 dedicated pin, 4 shared with DAC, 4 shared with DDC/IIC interface.
·3 output pin shared with H/V sync output and self test output pins.
·SYNC processor for composite separation, polarity and frequency check, and polarity adjust.
·Built-in monitor self test pattern generator.
·Built-in Low Power Reset circuit.
·IIC interface for DDC1/DDC2B and EEPROM, only one EEPROM needed to store DDC1/DDC2B and
·display mode information.
·Watch dog timer with programmable interval.
·40 pin PDIP package.

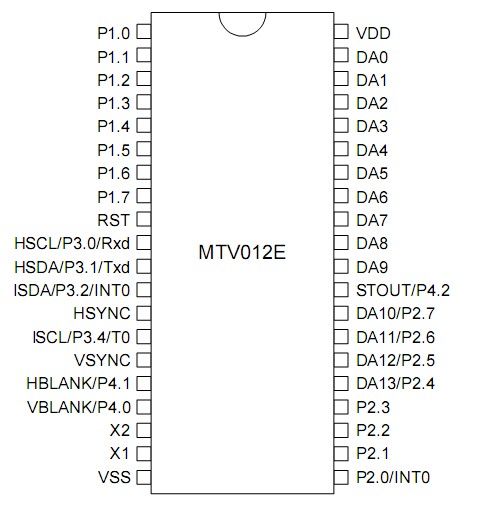

MTV012E Connection Diagram
MTV012E
PDF/DataSheet Download
- Datasheet: MTV012E
- File Size: 116498 KB
- Manufacturer: ETC [ETC]
- Click here to Download
