General Description
MTV048 General Description
MTV048 is designed for monitor applications to display built-in fonts onto monitor screens. The display operation occurs by transferring data and controls information from the micro controller to RAM through a serial data interface. It can execute a full-screen display automatically, as well as specific functions such as character background, bordering, shadowing, blinking, double height and width, font-by-font color control, button boxes, frame positioning, frame size control by character height and row-to-row spacing, horizontal display resolution, full- screen erasing, fade-in/fade-out effect, windowing effect, shadowing on window and full-screen self-test pattern generator.
MTV048 provides 384 fonts including 360 standard fonts, 16 multi-color fonts and 8 user fonts and 2 font sizes, 12x16 or 12x18 for more efficacious applications. The full OSD menu is formed by 15 rows x 30 columns, which can be positioned anywhere on the monitor screen by changing vertical or horizontal delay.
MTV048 Maximum Ratings
DC Supply Voltage (VDD,VDDA) ................-0.3 to +7 V
Voltage with respect to Ground .....-0.3 to VDD+0.3 V
Storage Temperature ...........................-65 to +150
Ambient Operating Temperature ...............0 to +70
Voltage with respect to Ground .....-0.3 to VDD+0.3 V
Storage Temperature ...........................-65 to +150
Ambient Operating Temperature ...............0 to +70
MTV048 Features
·Software control for CRT/LCD applications.
·Full screen self-test pattern generator with programmable pattern color.
·On-chip PLL circuitry (CRT) or external pixel clock input (LCD) up to 150 MHz.
·Horizontal SYNC input up to 150 KHz.
·Programmable horizontal resolutions up to 1524 dots per display line.
·Full screen display consists of 15 (rows) by 30 (columns).
·12x16 or 12x18 dot matrix selection.
·A total of 384 fonts including 360 standard fonts, 16 multi-color fonts and 8 user fonts.
·8 color selections for character foreground, background and window color.
·Character button boxes with programmable box length.
·Character bordering, shadowing and blinking effect for display.
·Full-screen character double width control.
·Double character height and/or width control per row.
·Programmable positioning for display screen center.
·Row to row spacing control per row to avoid expansion distortion.
·4 programmable background windows with multi-level operation and programmable shadow width/height/color.
·Software clear bit for full-screen erasing.
·Programmable adaptive approach to handle H, V sync collision automatically by hardware.
·Fade-in/fade-out or blend-in/blend-out effects.
·Compatible with SPI bus or I2C interface with address 7AH (slave address is mask option).
·5V or 3.3V power supply.
·16-pin PDIP/SOP package.
·Full screen self-test pattern generator with programmable pattern color.
·On-chip PLL circuitry (CRT) or external pixel clock input (LCD) up to 150 MHz.
·Horizontal SYNC input up to 150 KHz.
·Programmable horizontal resolutions up to 1524 dots per display line.
·Full screen display consists of 15 (rows) by 30 (columns).
·12x16 or 12x18 dot matrix selection.
·A total of 384 fonts including 360 standard fonts, 16 multi-color fonts and 8 user fonts.
·8 color selections for character foreground, background and window color.
·Character button boxes with programmable box length.
·Character bordering, shadowing and blinking effect for display.
·Full-screen character double width control.
·Double character height and/or width control per row.
·Programmable positioning for display screen center.
·Row to row spacing control per row to avoid expansion distortion.
·4 programmable background windows with multi-level operation and programmable shadow width/height/color.
·Software clear bit for full-screen erasing.
·Programmable adaptive approach to handle H, V sync collision automatically by hardware.
·Fade-in/fade-out or blend-in/blend-out effects.
·Compatible with SPI bus or I2C interface with address 7AH (slave address is mask option).
·5V or 3.3V power supply.
·16-pin PDIP/SOP package.

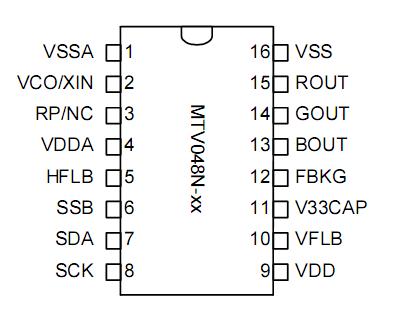

MTV048 Connection Diagram
MTV048
PDF/DataSheet Download
- Datasheet: MTV048
- File Size: 240399 KB
- Manufacturer: ETC [ETC]
- Click here to Download
