General Description
MTV312M64 General Description
The MTV312M micro-controller is an 8051 CPU core embedded device especially tailored to CRT/LCD Monitor applications. It includes an 8051 CPU core, 1024-byte SRAM, 14 built-in PWM DACs, VESA DDC interface, 4-channel A/D converter, and a 64K-byte internal program Flash-ROM.
MTV312M64 Maximum Ratings
at: Ta= 0 to 70 , VSS=0V
|
Name |
Symbol |
Range |
Unit |
| Maximum Supply Voltage Maximum Input Voltage Maximum Output Voltage Maximum Operating Temperature Maximum Storage Temperature |
VDD Vin Vout Topg Tstg |
-0.3 to +6.0 0.3 to VDD+0.3 0.3 to VDD+0.3 0 to +70 -25 to +125 |
V V V oC oC |
MTV312M64 Features
·8051 core, 12MHz operating frequency with double CPU clock option.
·0.35uM process; 5V/3.3V power supply and I/O; 3.3V core operating.
·1024-byte RAM; 64K-byte program Flash-ROM support In System Programming (ISP).
·Maximum 14 channels of PWM DAC.
·Maximum 31 I/O pins.
·SYNC processor for composite separation/insertion, H/V polarity/frequency check and polarity adjustment.
·Built-in low power reset circuit.
·Built-in self-test pattern generator with four free-running timings.
·Compliant with VESA DDC1/2B/2Bi/2B+ standard.
·Dual slave IIC addresses; H/W auto transfer DDC1/DDC2x data.
·Single master IIC interface for internal device communication.
·Maximum 4-channel 6-bit ADC.
·Watchdog timer with programmable interval.
·40-pin DIP, 42-pin SDIP or 44-pin PLCC package.
·0.35uM process; 5V/3.3V power supply and I/O; 3.3V core operating.
·1024-byte RAM; 64K-byte program Flash-ROM support In System Programming (ISP).
·Maximum 14 channels of PWM DAC.
·Maximum 31 I/O pins.
·SYNC processor for composite separation/insertion, H/V polarity/frequency check and polarity adjustment.
·Built-in low power reset circuit.
·Built-in self-test pattern generator with four free-running timings.
·Compliant with VESA DDC1/2B/2Bi/2B+ standard.
·Dual slave IIC addresses; H/W auto transfer DDC1/DDC2x data.
·Single master IIC interface for internal device communication.
·Maximum 4-channel 6-bit ADC.
·Watchdog timer with programmable interval.
·40-pin DIP, 42-pin SDIP or 44-pin PLCC package.

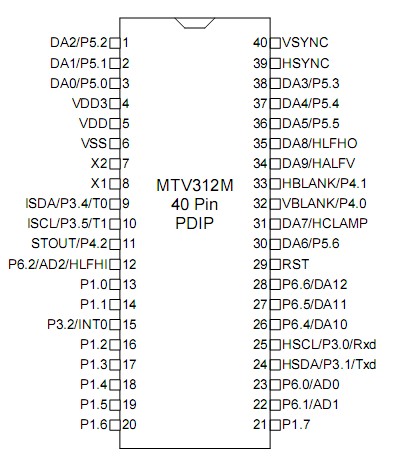

MTV312M64 Connection Diagram
MTV312M64
