MUR840: Rectifiers 8A 400VA

MUR840 Data Sheet

US $ .26~.34 / Piece | Get Latest Price

Part Number:: MUR840
Mfg:: Taiwan Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~2000
2000~4000
4000~6000

Unit Price
$.34
$.3
$.26

Processing time
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2026/1/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Product :	Ultra Fast Recovery Rectifiers	Configuration :	Single
Reverse Voltage :	400 V	Forward Voltage Drop :	1.3 V
Recovery Time :	50 ns	Forward Continuous Current :	8 A
Max Surge Current :	100 A	Reverse Current IR :	5 uA
Mounting Style :	Through Hole	Package / Case :	TO-220AC
Packaging :	Tube

Description

Product : Ultra Fast Recovery Rectifiers
Configuration : Single
Forward Continuous Current : 8 A
Reverse Current IR : 5 uA
Mounting Style : Through Hole
Packaging : Tube
Package / Case : TO-220AC
Max Surge Current : 100 A
Reverse Voltage : 400 V
Recovery Time : 50 ns
Forward Voltage Drop : 1.3 V

Features:

· Glass passivated chip
· Superfast switching time for hight efficiency
· Low reverse leakage current
· High surge capacity

Specifications

· Operating Junction Temperature: -55°C to +150°C
· Storage Temperature: -55°C to +150°C

MCC Catalog Number	Device Marking	Maximum Recurrent Peak Reverse Voltage	Maximum RMS Voltage	Maximum DC Blocking Voltage
MUR805	MUR805	50V	35V	50V
MUR810	MUR810	100V	70V	100V
MUR820	MUR820	200V	140V	200V
MUR840	MUR840	400V	320V	400V

Parameters:

Technical/Catalog Information	MUR840
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	400V
Current - Average Rectified (Io)	8A
Voltage - Forward (Vf) (Max) @ If	1.3V @ 8A
Reverse Recovery Time (trr)	60ns
Current - Reverse Leakage @ Vr	10A @ 400V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Through Hole, Radial
Package / Case	TO-220-2 (Straight Leads)
Packaging	Tube
Capacitance @ Vr, F	-
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MUR840 MUR840 MUR840OS ND MUR840OSND MUR840OS

Customers Who Bought This Item Also Bought

MUR8100EG
US $$0.10 - 1.50 / Piece

Supply Ability:10000Week

View details
MUR8100EG
US $$0.35 - 0.50 / Piece

Supply Ability:10000Week

View details

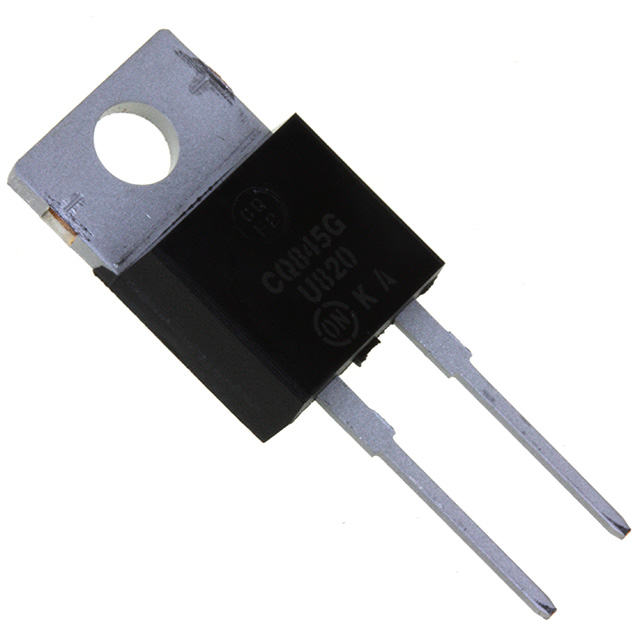

MUR820G
