Purchase MV20556, In-stock MV20556 From SeekIC.
Part Number: MV20556
Description: The MVI MV20556 is an 8 - bit single chip microcontroller. It provides hardware features and powerful ...
- Table of contents:
MV20556
-
Suppliers
DataSheet
General Description
MV20556 General Description
The MVI MV20556 is an 8 - bit single chip microcontroller. It provides hardware features and powerful instruction set that are necessary to make it a versatile and cost effective controller for mouse applications which needs up to 4K byte internal memory either for program or for data and mixed. A serial input / output port is provided for I/O expansion, Inter - processor communications, full duplex UART.
MV20556 Maximum Ratings
|
Symbol |
Name |
Rating |
Units |
|
VDD - Vss |
DC supply Voltage |
-0.5 - +7.0 |
V |
|
VIN |
Input voltage |
Vss-0.3 - VDD+0.3 |
V |
|
VOUT |
output voltage |
Vss - VDD |
|
|
T(Operating) |
Operating Temperature |
0 - +70 |
°C |
|
T(Storage) |
Storage Temperature |
-55 - +125 |
°C |
affect device reliability.
MV20556 Features
·General 8051 instruction family compatible
·Operate at voltage 5.0V.
·No External Memory is supported
·8 bit bus I/O ports
·4 K byte ROM
·128 byte RAM
·128 byte depth stack
·Two 16 bit Timers (Event Counters)
·15 programmable I/O pins
·Five interrupt sources
·Programmable serial UART channel
·Direct LED drive output
·Bit operation instructions
·Page free jumps
·8 - bit Unsigned Division
·8 - bit Unsigned Multiply
·BCD arithmatic
·Direct Addressing
·Indirect Addressing
·Nested Interrupt
·Two priority level interrupt
·A full duplex serial I/O port
·Working at 16/25/40 MHz Clock
·Full static operation: 3 MHz through 16 MHz
·Operate at voltage 5.0V.
·No External Memory is supported
·8 bit bus I/O ports
·4 K byte ROM
·128 byte RAM
·128 byte depth stack
·Two 16 bit Timers (Event Counters)
·15 programmable I/O pins
·Five interrupt sources
·Programmable serial UART channel
·Direct LED drive output
·Bit operation instructions
·Page free jumps
·8 - bit Unsigned Division
·8 - bit Unsigned Multiply
·BCD arithmatic
·Direct Addressing
·Indirect Addressing
·Nested Interrupt
·Two priority level interrupt
·A full duplex serial I/O port
·Working at 16/25/40 MHz Clock
·Full static operation: 3 MHz through 16 MHz

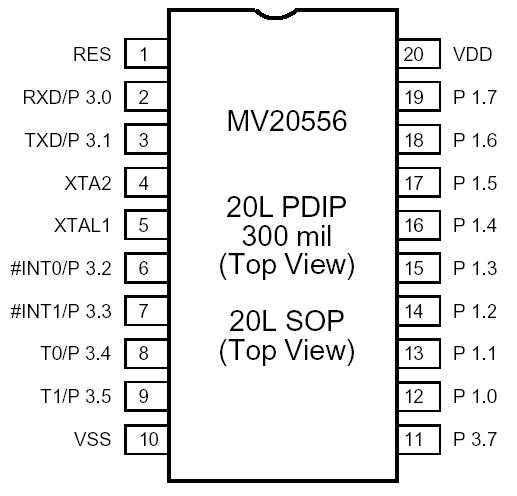

MV20556 Connection Diagram
MV20556
PDF/DataSheet Download
- Datasheet: MV20556
- File Size: 109177 KB
- Manufacturer: MOSEL [Mosel Vitelic, Corp]
- Click here to Download
