MV5094A

Standard LED - Through Hole Hi Eff Red Diffused Bipolar

product image

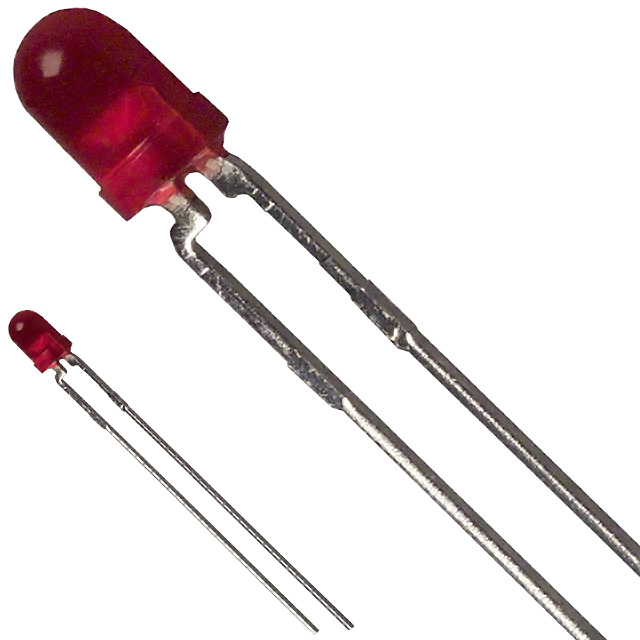

MV5094A Picture
See larger image
SeekIC No. : 0054603 Detail

MV5094A: Standard LED - Through Hole Hi Eff Red Diffused Bipolar

MV5094A Data Sheet

floor Price/Ceiling Price

US $ .07~.17 / Piece | Get Latest Price
Part Number:
MV5094A
Mfg:
Everlight
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~50
  • 50~100
  • 100~500
  • Unit Price
  • $.17
  • $.14
  • $.1
  • $.07
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Illumination Color : Red Luminous Intensity : 5 mcd
Wavelength/Color Temperature : 660 nm Viewing Angle : 75 deg
Lens Color/Style : White Diffused Forward Current : 20 mA
Forward Voltage : 2 V LED Size : T-1 3/4
Packaging : Bulk

Description

Illumination Color : Red
Forward Current : 20 mA
Packaging : Bulk
Forward Voltage : 2 V
LED Size : T-1 3/4
Wavelength/Color Temperature : 660 nm
Luminous Intensity : 5 mcd
Lens Color/Style : White Diffused
Viewing Angle : 75 deg


Features:

• Popular T-1 3/4 package
• Wide viewing angle
• Solid state reliability


Specifications

Parameter
AlGaAs Red/HER
MV5094A
AlGaAs Red/Green
MV5491A
Unit
Continuous Forward Current (IF)
30/30
30/30
mA
Peak Forward Current (IF)
(f = 1.0 KHz, Duty Factor = 1/10)
90
90
mA
Reverse Voltage - VR (IR = 10 µA)
5
5
V
Power Dissipation (PD)
120
120
mW
Operating Temperature (TOPR)
-40 to +100
°C
Storage Temperature (TSTG)
-40 to +100
°C
Lead Soldering Time (TSOL)
Wave
Reflow
260 for 5 sec
240 for 5 sec
°C



Description

The MV5094A is a two-leaded bipolar T-1 3/4 (5mm) lamp with standoff. Each lamp comes with a white diffused lens with a viewing angle of 75°.




Parameters:

Technical/Catalog InformationMV5094A
VendorFairchild Optoelectronics Group
CategoryOptoelectronics
ColorRed
Lens Style/SizeRound, 5mm, T-1 3/4
Millicandela Rating5mcd
Voltage - Forward (Vf) Typ2.0V
Wavelength - Dominant635nm, 660nm
Wavelength - Peak635nm, 660nm
Current - Test20mA
Viewing Angle75°
Lens TypeDiffused, Red Tinted
Luminous Flux6 mlm
Package / CaseRadial
Mounting TypeThrough Hole
PackagingBulk
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MV5094A
