Purchase MX23L12810, In-stock MX23L12810 From SeekIC.
MFG:MX Package Cooled:SO-44 D/C:2003
- Table of contents:
MX23L12810
-
Suppliers
DataSheet
General Description
MX23L12810 Maximum Ratings
| Item | Symbol | Ratings |
| Voltage on any Pin Relative to VSS | VIN | -1.3V to VCC+2.0V (Note) |
| Ambient Operating Temperature | Topr | 0 to 70 |
| Storage Temperature | Tstg | -65 to 125 |
Note: Minimum DC voltage on input or I/O pins is -0.5V. During voltage transitions, inputs may undershoot VSS to -1.3V for periods of up to 20ns. Maximum DC voltage on input or I/O pins is VCC+0.5V. During voltage transitions, inputs may overshoot VCC to VCC+2.0V for periods of up to 20ns.
MX23L12810 Features
• Bit organization
- 8M x 16 (word mode)
• Fast access time
- Random access: 90ns (max.)
• Current
- Operating:50mA
- Standby:15uA
• Supply voltage
- 3.0~3.6V
• Package
- 44 pin SOP (500mil)
• Temperature
- 0 ~ 70°C
- 8M x 16 (word mode)
• Fast access time
- Random access: 90ns (max.)
• Current
- Operating:50mA
- Standby:15uA
• Supply voltage
- 3.0~3.6V
• Package
- 44 pin SOP (500mil)
• Temperature
- 0 ~ 70°C

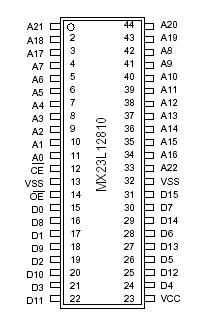

MX23L12810 Connection Diagram
MX23L12810
PDF/DataSheet Download
- Datasheet: MX23L12810
- File Size: 231874 KB
- Manufacturer: MCNIX [Macronix International]
- Click here to Download
