MX23L2000
-
Suppliers
DataSheet
General Description
MX23L2000 Maximum Ratings
|
Item |
Symbol |
Ratings |
| Voltage on any Pin Relative to VSS |
VIN |
-0.3V to 3.9V |
| Ambient Operating Temperature |
Topr |
-40°C to 85°C |
|
Storage Temperature |
Tstg |
-65°C to 125°C |
MX23L2000 Features
• Bit organization
- 256K x 8 (byte mode)
• Fast access time
- Random access: 150ns
• Current
- Operating: 20mA
- Standby: 20uA
• Supply voltage
- 2.7V ~ 3.6V
• Package
- 32 pin SOP (450 mil)
- 32 pin TSOP (8mm x 20mm)
- 256K x 8 (byte mode)
• Fast access time
- Random access: 150ns
• Current
- Operating: 20mA
- Standby: 20uA
• Supply voltage
- 2.7V ~ 3.6V
• Package
- 32 pin SOP (450 mil)
- 32 pin TSOP (8mm x 20mm)

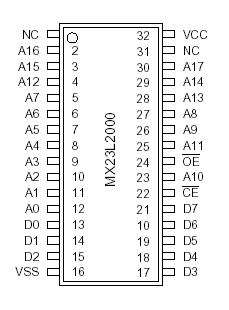

MX23L2000 Connection Diagram
MX23L2000
PDF/DataSheet Download
- Datasheet: MX23L2000
- File Size: 100969 KB
- Manufacturer:
- Click here to Download
