MX23L4100
-
Suppliers
DataSheet
General Description
MX23L4100 Maximum Ratings
Voltage on any Pin Relative to VSS .....VIN ......-0.8V to VCC+2.0V (Note)
Ambient Operating Temperature ........Topr .......................0°C to 70°C
Storage Temperature......................... Tstg ..................-65°C to 125°C
Note: Minimum DC voltage on input or I/O pins is -0.5V. During voltage transitions, inputs may undershoot VSS to -0.8V for periods of up to 20ns. Maximum DC voltage on input or I/O pins is VCC+0.5V. During voltage transitions, input may overshoot VCC to VCC+2.0V for periods of up to 20ns.
MX23L4100 Features
• Bit organization
- 512K x 8 (byte mode)
- 256K x 16 (word mode)
• Fast access time
- Random access: 100ns
• Current
- Operating: 30mA
- Standby: 20uA
• Supply voltage
- 3.3V±10%
• Package
- 40 pin SOP (500 mil)
- 40 pin PDIP (600 mil)
- 512K x 8 (byte mode)
- 256K x 16 (word mode)
• Fast access time
- Random access: 100ns
• Current
- Operating: 30mA
- Standby: 20uA
• Supply voltage
- 3.3V±10%
• Package
- 40 pin SOP (500 mil)
- 40 pin PDIP (600 mil)

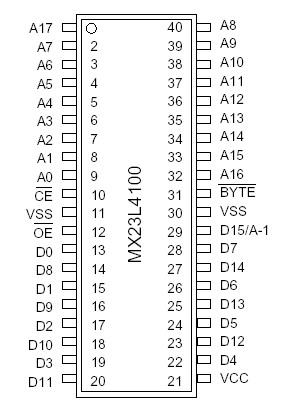

MX23L4100 Connection Diagram
MX23L4100
PDF/DataSheet Download
- Datasheet: MX23L4100
- File Size: 468796 KB
- Manufacturer: MCNIX [Macronix International]
- Click here to Download
