MX23L6422
-
Suppliers
DataSheet
General Description
MX23L6422 Maximum Ratings
Item Symbol Ratings
Voltage on any Pin Relative to VSS VIN -1.3V to VCC+2.0V (Note)
Ambient Operating Temperature Topr 0° C to 70° C
Storage Temperature Tstg -65° C to 125° C
Voltage on any Pin Relative to VSS VIN -1.3V to VCC+2.0V (Note)
Ambient Operating Temperature Topr 0° C to 70° C
Storage Temperature Tstg -65° C to 125° C
MX23L6422 Features
• Bit organization
- 4M x 16 (byte mode)
- 2M x 32 (double word mode)
• Fast access time
- Random access: 110ns (max.) for 3.15~3.6V
120ns (max.) for 3.0~3.6V
- Page access: 30ns (max.)
• Page Size
- 8 double words per page
• Current
- Operating: 60mA (max.)
- Standby: 20uA (max.)
• Supply voltage
- 3.3V±10%
• Package
- 70 pin SSOP
- 86 pin TSOP(2)
- 4M x 16 (byte mode)
- 2M x 32 (double word mode)
• Fast access time
- Random access: 110ns (max.) for 3.15~3.6V
120ns (max.) for 3.0~3.6V
- Page access: 30ns (max.)
• Page Size
- 8 double words per page
• Current
- Operating: 60mA (max.)
- Standby: 20uA (max.)
• Supply voltage
- 3.3V±10%
• Package
- 70 pin SSOP
- 86 pin TSOP(2)

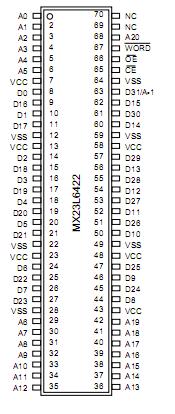

MX23L6422 Connection Diagram
MX23L6422
PDF/DataSheet Download
- Datasheet: MX23L6422
- File Size: 40861 KB
- Manufacturer: MCNIX [Macronix International]
- Click here to Download
