Purchase MX26C4000B, In-stock MX26C4000B From SeekIC.
Part Number: MX26C4000B
Description: The MX26C4000B is a 5V only, 4M-bit, MTP EPROMTM (Multiple Time Programmable Read Only Memo...
- Table of contents:
MX26C4000B
-
Suppliers
DataSheet
General Description
MX26C4000B General Description
The MX26C4000B is a 5V only, 4M-bit, MTP EPROMTM (Multiple Time Programmable Read Only Memory). It is organized as 512K words by 8 bits per word, operates from a single + 5 volt supply, has a static standby mode,and features fast single address location programming.All programming signals are TTL levels, requiring a single pulse. It is design to be programmed and erased by an EPROM programmer or on-board. The MX26C4000B supports a intelligent fast programming algorithm which can result in programming time of less than one minute.
This MTP EPROMTM is packaged in industry standard 32 pin dual-in-line packages, 32 lead PLCC, 32 lead SOP and 32 lead TSOP packages.
MX26C4000B Maximum Ratings
| RATING | VALUE |
| Ambient Operating Temperature | -40 to 85 |
| Storage Temperature | -65 to 125 |
| Applied Input Voltage | -0.5V to 7.0V |
| Applied Output Voltage | -0.5V to VCC + 0.5V |
| VCC to Ground Potential | -0.5V to 7.0V |
| A9 & VPP | -0.5V to 13.5V |
MX26C4000B Features
• 512Kx 8 organization
• Single +5V power supply
• +12V programming voltage
• Fast access time:70/90/100/120/150 ns
• Totally static operation
• Completely TTL compatible
• Operating current:30mA
• Standby current: 100uA
• Chip erase time: 2s (typ.)
• Chip program time: 25s (typ.)
• 100 minimum erase/program cycles
• Typical fast programming cycle duration 100us/byte
• Package type:
- 32 pin plastic DIP
- 32 pin PLCC
- 32 pin TSOP
- 32 pin SOP
• Single +5V power supply
• +12V programming voltage
• Fast access time:70/90/100/120/150 ns
• Totally static operation
• Completely TTL compatible
• Operating current:30mA
• Standby current: 100uA
• Chip erase time: 2s (typ.)
• Chip program time: 25s (typ.)
• 100 minimum erase/program cycles
• Typical fast programming cycle duration 100us/byte
• Package type:
- 32 pin plastic DIP
- 32 pin PLCC
- 32 pin TSOP
- 32 pin SOP

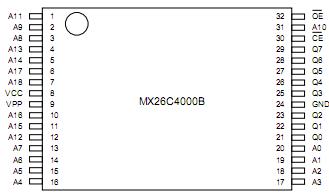

MX26C4000B Connection Diagram
MX26C4000B
PDF/DataSheet Download
- Datasheet: MX26C4000B
- File Size: 980962 KB
- Manufacturer: MCNIX [Macronix International]
- Click here to Download
