MX26C512A

Features:

• 64K x 8 organization
• +5V operating power supply
• +12.75V program/erase voltage
• Electric erase instead of UV light erase
• Fast access time: 70/90/100/120/150 ns
• Totally static operation
• Completely TTL compatible
• Operating current: 30mA
• Standby current: 100uA
• 100 minimum erase/program cycles
• Package type:
   - 28 pin plastic DIP
   - 28 pin SOP
   - 32 pin PLCC
   - 28 pin TSOP(I)

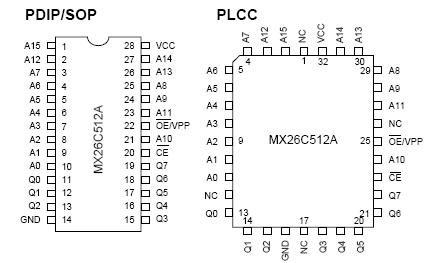

Pinout




Specifications

RATING	VALUE
Ambient Operating Temperature	0oC to 70oC
Storage Temperature	-65oC to 125oC
Applied Input Voltage	-0.5V to 7.0V
Applied Output Voltage	-0.5V to VCC + 0.5V
VCC to Ground Potential	-0.5V to 7.0V
A9 & Vpp	-0.5V to 13.5V

Description

The MX26C512A is a 12.75V/5V, 512K-bit, MTP EPROMTM (Multiple Time Programmable Read Only Memory). It is organized as 64K words by 8 bits per word,
operates from a + 5 volt supply, has a static standby mode, and features fast single address location programming. It is designed to be reprogrammed and erased by an EPROM programmer or on-board. All programming/ erasing signals are TTL levels, requiring a single pulse.

The MX26C512A supports an intelligent quick pulse programming algorithm which can result in a programming time of less than 30 seconds.

This MTP EPROM^TM is packaged in industry standard 28 pin dual-in-line packages, 32 pin PLCC packages or 28 pin TSOP packages and 28 pin SOP packages.
