Purchase MX26L6420, In-stock MX26L6420 From SeekIC.
MFG:MX D/C:08+
Part Number: MX26L6420
MFG: MX
D/C: 08+
Description: The MX26L6420 is a 64M bit MTP EPROMTM organized as 4M bytes of 16 bits. MXIC's MTP EPROMTM offer the ...
- Table of contents:
MX26L6420
-
Suppliers
DataSheet
General Description
MX26L6420 General Description
The MX26L6420 is a 64M bit MTP EPROMTM organized as 4M bytes of 16 bits. MXIC's MTP EPROMTM offer the most cost-effective and reliable read/write non-volatile random access memory. The MX26L6420 is packaged in 44SOP, 48-pin TSOP, 48-ball CSP and 63-ball CSP. It is designed to be reprogrammed and erased in system or in standard EPROM programmers.
The standard MX26L6420 offers access time as fast as 90ns, allowing operation of high-speed microprocessors without wait states. To eliminate bus contention, the MX26L6420 has separate chip enable (CE ) and output enable OE controls. MXIC's MTP EPROMTM augment EPROM functionality with in-circuit electrical erasure and programming. The MX26L6420 uses a command register to manage this functionality.
MXIC's MTP EPROMTM technology reliably stores memory contents even after 100 erase and program cycles. The MXIC cell is designed to optimize the erase and program mechanisms. In addition, the combination of advanced tunnel oxide processing and low internal electric fields for erase and programming operations produces reliable cycling.
The MX26L6420 uses a 2.7V to 3.6V VCC supply to perform the High Reliability Erase and auto Program/ Erase algorithms.
The highest degree of latch-up protection is achieved with MXIC's proprietary non-epiprocess. Latch-up protection is proved for stresses up to 100 milliamps on address and data pin from -1V to VCC +1V.
MX26L6420 Maximum Ratings
Storage Temperature
Plastic Packages . . . . . . . . . . . . . ..-65oC to +150oC
Ambient Temperature
with Power Applied. . . . . . . . . . . . .-65oC to +125oC
Voltage with Respect to Ground
VCC (Note 1) . . . . . . . . . . . . . . . . . .-0.5 V to +4.0 V
A9, OE , and
RESET (Note 2) . . . . . . . . . . . .... . .-0.5 V to +12.5 V
All other pins (Note 1) . . . . . . . -0.5 V to VCC +0.5 V
Output Short Circuit Current (Note 3) . . . . . . 200 mA
Commercial (C) Devices
Ambient Temperature (TA ). . . . . . . . . .0°C to +70°C
Industrial (I) Devices
Ambient Temperature (TA ). . . . . . . . -40°C to +85°C
VCC Supply Voltages
VCC for full voltage range. . . . . . . . . .+2.7 V to 3.6 V
Plastic Packages . . . . . . . . . . . . . ..-65oC to +150oC
Ambient Temperature
with Power Applied. . . . . . . . . . . . .-65oC to +125oC
Voltage with Respect to Ground
VCC (Note 1) . . . . . . . . . . . . . . . . . .-0.5 V to +4.0 V
A9, OE , and
RESET (Note 2) . . . . . . . . . . . .... . .-0.5 V to +12.5 V
All other pins (Note 1) . . . . . . . -0.5 V to VCC +0.5 V
Output Short Circuit Current (Note 3) . . . . . . 200 mA
Commercial (C) Devices
Ambient Temperature (TA ). . . . . . . . . .0°C to +70°C
Industrial (I) Devices
Ambient Temperature (TA ). . . . . . . . -40°C to +85°C
VCC Supply Voltages
VCC for full voltage range. . . . . . . . . .+2.7 V to 3.6 V
MX26L6420 Features
• 4,194,304 x 16 byte structure
• Single Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
• Low Vcc write inhibit is equal to or less than 2.5V
• Compatible with JEDEC standard
• High Performance
- Fast access time: 90/120ns (typ.)
- Fast program time: 140s/chip (typ.)
- Fast erase time: 150s/chip (typ.)
• Low Power Consumption
- Low active read current: 17mA (typ.) at 5MHz
- Low standby current: 30uA (typ.)
• Minimum 100 erase/program cycle
• Status Reply
- Data polling & Toggle bits provide detection of
program and erase operation completion
• 12V ACC input pin provides accelerated program capability
• Output voltages and input voltages on the device is
deterined by the voltage on the VI/O pin.
- VI/O voltage range:1.65V~3.6V
• 10 years data retention
• Package
- 44-Pin SOP
- 48-Pin TSOP
- 48-Ball CSP
- 63-Ball CSP
• Single Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
• Low Vcc write inhibit is equal to or less than 2.5V
• Compatible with JEDEC standard
• High Performance
- Fast access time: 90/120ns (typ.)
- Fast program time: 140s/chip (typ.)
- Fast erase time: 150s/chip (typ.)
• Low Power Consumption
- Low active read current: 17mA (typ.) at 5MHz
- Low standby current: 30uA (typ.)
• Minimum 100 erase/program cycle
• Status Reply
- Data polling & Toggle bits provide detection of
program and erase operation completion
• 12V ACC input pin provides accelerated program capability
• Output voltages and input voltages on the device is
deterined by the voltage on the VI/O pin.
- VI/O voltage range:1.65V~3.6V
• 10 years data retention
• Package
- 44-Pin SOP
- 48-Pin TSOP
- 48-Ball CSP
- 63-Ball CSP

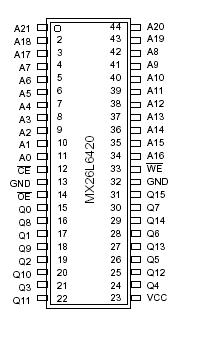

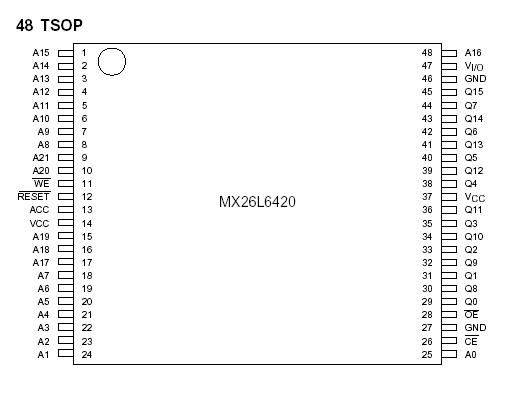

MX26L6420 Connection Diagram
MX26L6420
PDF/DataSheet Download
- Datasheet: MX26L6420
- File Size: 1283816 KB
- Manufacturer: MCNIX [Macronix International]
- Click here to Download
